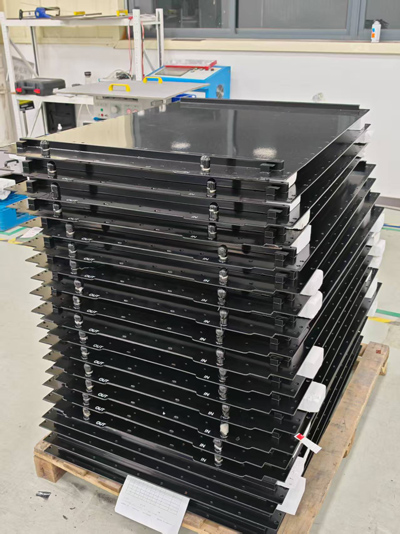

314 Cooling Plate: High-Performance Thermal Management for Extreme Environments

Superior Material for High-Temperature Stability

The 314 cooling plate, primarily manufactured from AISI 314 stainless steel, is engineered for demanding high-temperature and corrosive environments. With a composition rich in chromium (23–26%), nickel (19–22%), and silicon (1.5–3.0%), this austenitic alloy delivers outstanding heat resistance, oxidation resistance, and mechanical stability, maintaining performance at temperatures up to 1150°C.

Efficient Heat Exchange Design

The internal structure of the 314 cooling plate features optimized serpentine or parallel flow channels, enabling efficient heat transfer through circulating coolants such as water or glycol. This design ensures uniform temperature distribution and effective dissipation of concentrated heat loads.

Enhanced Corrosion and Oxidation Resistance

The elevated silicon content promotes the formation of a protective SiO₂ layer on the surface, significantly improving resistance to sulfidation and scaling. This makes the 314 cooling plate particularly suitable for harsh operating conditions found in petrochemical processing, metallurgy, and waste incineration industries.

Improved Strength Under Thermal Stress

Compared to conventional 304 and 316 stainless steel cooling plates, the 314 variant offers superior creep strength and structural integrity under prolonged high-temperature exposure. This ensures long-term reliability and reduces the risk of deformation or failure in extreme applications.

Reliable Manufacturing and Wide Applications

Manufactured precision welding or brazing processes, 314 cooling plates provide leak-proof performance and consistent thermal conductivity. They are widely used in furnace heat exchangers, radiant tubes, and high-temperature battery thermal management systems.

Conclusion: Durability Meets Efficiency

In modern industrial applications, the 314 cooling plate achieves an optimal balance between durability and thermal efficiency, making it a critical component for reliable and long-lasting thermal management in extreme operating conditions.
