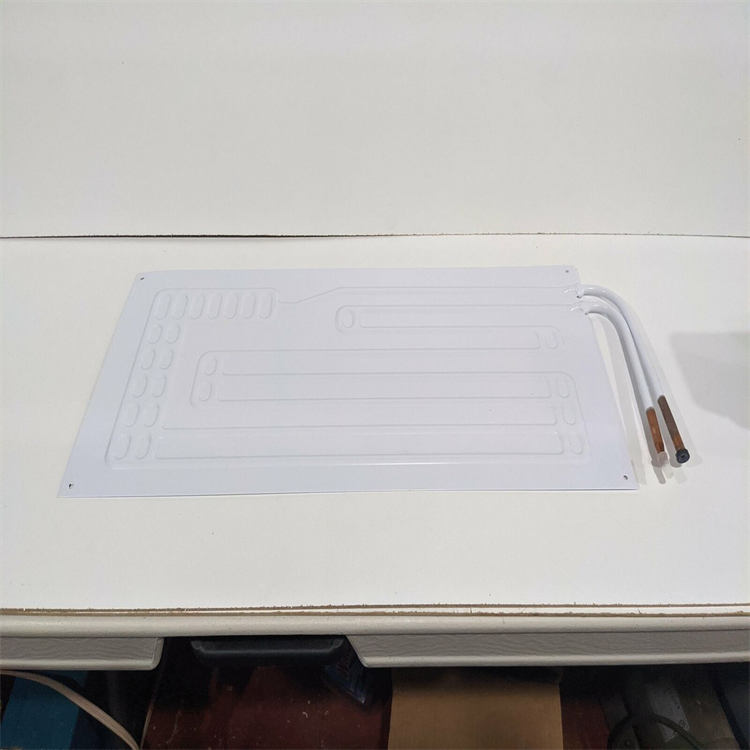

Double Side Inflated Aluminium Roll-Bonded Evaporator Liquid Cold Plate
Aluminum inflated Roll Bonded liquid cold plates are generally made of two spaced thin aluminum sheets, (laser) welded to each other. The space between the plates is pressurized to deform one or both plates in order to provide a space in which a cooling medium can circulate.
Once the two thin sheets are laser welded together - (by welding a custom circle pattern) - spot welds are then created to form channels. Additional welding paths are often added to allow adjustments and to control direction and velocity which optimizes the cold plate.
Specification:
| Item | Double side inflated roll-bonded evaporator |
| Material | Inflated plate :AL-1060 Flat plate: AL-3003 |
| Size | Customized as your design |
| Max.width | 700mm |
| Thickness | 1.5-2.0mm |
| Feature | Lightweight ,lower cost at development stage |
| Application | Used in freezer, refrigerator,air conditioner, wine cabinet, showcase chiller etc. |
| Structure | DSI: Double side roll bond evaporator OSF:Single side roll bond evaporator OSFX: Part single side roll bond evaporator |
| Key process | preparing materials – cleaning – printing – rolling – annealing - blowing up – punching –folding and sharpening –adding the capillary – assemble welding – leakage testing – cleaning and drying – coating - inspection – packing |
| MOQ | 100pcs |
Application of the aluminum roll bonded evaporator
1-Domestic and Commercial Refrigeration: Evaporators for static refrigerators and freezers & Condensers
2-Thermodynamic Heat Pumps:Solar Evaporators & Condensers for boilers and water tanks
3-Climatization:Radiant ceilings & Radiant walls
4-Electronics and Automotive:PCB cooling frame &Box water cooling & Battery cooling & Surface heat exchangers
Performance
1) Surface treated with powder painting to prevent the corrosion
2) Inner cleanness can meet the requirement of R134a & CFC cooling system.
3) Can satisfy the cooling capability requirements
More solutions for battery thermal management system:
1-Aluminum extruded micro channel cooling tube
2-Aluminum stamping cold plate
3-Snake cooling ribbon
FAQ:
1. Which battery module cooling solution you can provide ?
A: We have 4 kinds of battery cooling type for your battery pack. Aluminum snake tube for cylindrical shaped of cells. Aluminum brazed cooled plate for prismatic cells ,aluminum micro channel plates for pouches and aluminum roll bonded panels .
2.What the alloy and temper of your water cooling plate ？
A:The aluminum alloy is 3000,6000 and temper is O-H112.
3.What the process technology to do the cold plate or coolant channles ?
A:Aluminum extrusion process , vacuum brazing process, roll bonded process and we also have CNC center.
4.Do you support customized prototype for battery pack module ?
A:Sure, we can produce the aluminum roll-bonded plate as your design. If just at the development stage, our existing cooled plate heat sinks are available for checking.
