Water cooling plate: a key component to improve heat dissipation efficiency

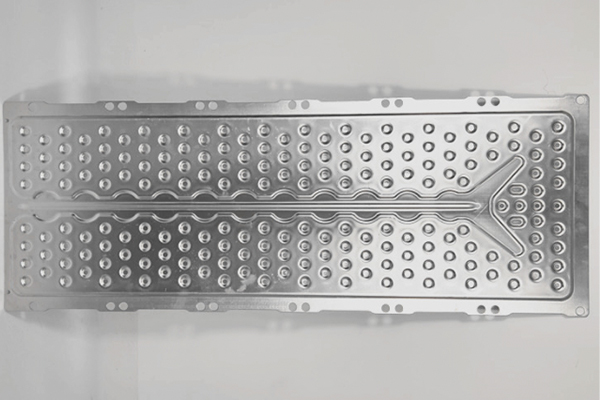

A water cooling plate is a thermal management device that uses water as a cooling medium. It is usually made of high thermal conductivity materials, such as copper or aluminum, and guides water to the heat source through built-in cooling channels to absorb and carry away the generated heat. Water cooling plates play a key role in the heat dissipation system, which can effectively reduce the temperature of the equipment and keep the equipment in normal working condition.

The working principle of the water cooling plate can be divided into the following steps:

1. Heat transfer: The thermal conductor (usually copper or aluminum) of the water cooling plate directly contacts the surface of the equipment that needs to be dissipated, absorbing the heat generated by the equipment.

2. Water flow cooling: Water flows through the channels inside the cooling plate, which are usually designed in a complex grid or spiral shape to increase the contact area and flow time of the water flow. The water absorbs heat in the channel and is carried away.

3. Heat discharge: The water with heat flows out of the cooling plate through the outlet, passes through an external cooling device (such as a cooler or radiator), and the heat is released into the air. The cooled water flows into the cooling plate again.

4. Recycling: The cooled water returns to the inside of the cooling plate, repeating the above process to achieve continuous thermal management.

In short, as an efficient heat dissipation solution, the water cooling plate has demonstrated its unique advantages in multiple industries. With the continuous development of technology, the water cooling plate will continue to play an important role in improving heat dissipation efficiency and optimizing equipment performance.
