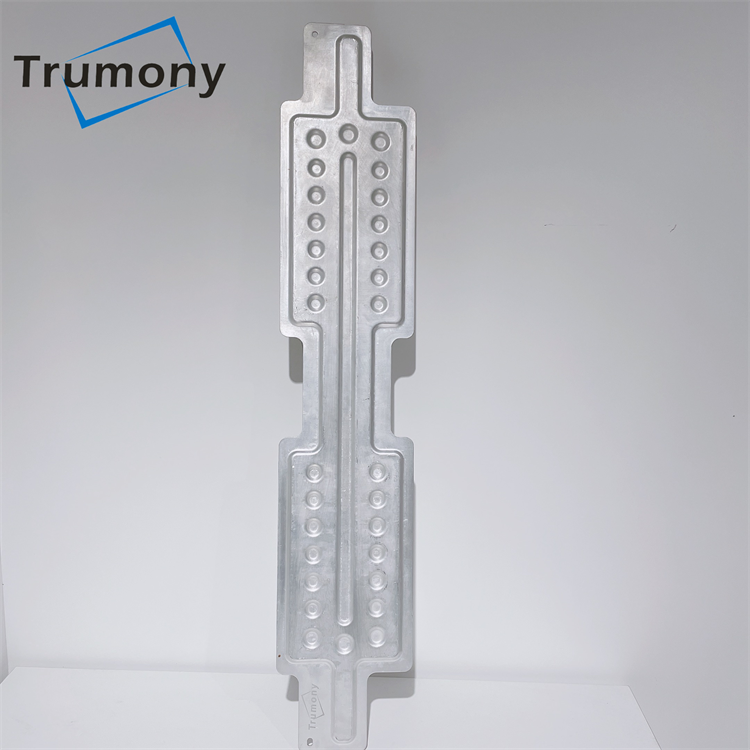

Custom Aluminum Electric Vacuum Brazed Water Cooling Block Cold Plate for E-mobility
Aluminum water cooling cold plate are made by vacuum brazed process. It is widely used for new energy cars, energy storage system, IGBT heat transfer and Inverter heat sink.
Specification
| Item | Vacuum brazed car cold plate |
| Size | As your design |
| Thickness(after stamping) | 5-8mm |
| Cooling type | liquid cooling instead of air cooling |
| Structure | flow channel upper plate /covered down plate / CNC connctors / plastic quick connectors |
| Application | household power energy system & industrial energy storage system |
| Liquid cold plate type | cold plate cooling plate for EV, stamped cold plate for ESS,harmonica shaped cooling tube plate , EV battery snake cooling tube ,aluminum roll bonded plate |
Battery cooling solutions for EV pack
| 1 | Aluminum microchannel flat tube plates |
| 2 | Double layer liquid cooling plate |
| 3 | Three layer liquid cooling plate |
| 4 | Composite welded fin type cold plate |
| 5 | Aluminum roll bonded cold plate |
| 6 | Die casting cold plate |
| 7 | Cooling ribbon |
With very rich experience in making cooling plates for battery packs.Below are the strength from us that you can rely on:
1. Aid in cooling components design feasibility
2. Proven solutions for both prismatic and cylindrical cells
3. Capability in doing DVP with client
4. Fast support in Prototype making
FAQ :
1. What battery module cooling solution you can provide ?
A: We have 4 kinds of battery cooling type for your battery pack. Aluminum snake tube for cylindrical shaped of cells. Aluminum brazed cooled plate for prismatic cells ,aluminum micro channel plates for pouches and aluminum roll bonded panels .
2.What the alloy and temper of your water cooling plate ？
A:The aluminum alloy is 3000,6000 and temper is O-H112.
3.What the process technology to do the cold plate or coolant channles ?
A:Aluminum extrusion process , vacuum brazing process, roll bonded process and we also have CNC center.
4.Do you support customized prototype for battery pack module ?
A:Sure, we can produce the aluminum liquid cooling plate as your design. If just at the development stage, our existing cooled plate heat sinks are available for checking.
If you are interested in our aluminum cooling plate for electric battery battery pack , pls send iqnuiry to us and we can arrange online meeting to discuss more details~~
