Customized Battery Engergy Stoage System (BESS) Liquid Cooling Solution
ESS Liquid Cooling System can directly cool and heat battery modules to maintain battery cells in their optimal temp. range. The liquid cooling plate in contact with the battery module’s exterior surface allows for a direct heat exchange with cells through thermal paths (manifold) integrated in the module design.While operating during charge/discharge states, the cooling system cools and circulates a heated water-glycol coolant to the heat exchanger for heat dissipation. In cold environments, the system circulates heated water-glycol coolant, maintaining lithium-ion battery modules and cells within their ideal temp. range so they can safely charge .
Specification
| Item | ESS battery cooling |
| Size | As your design |

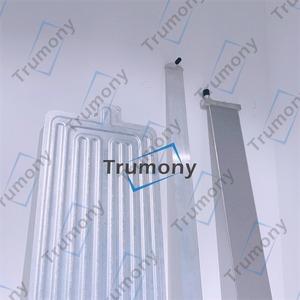

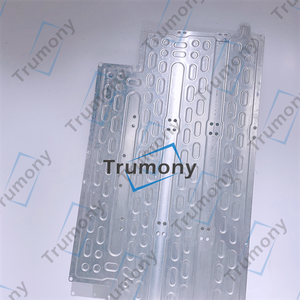

| Cooling solution | 1. Snake cooling tube for cylindrical cells 2. Liquid cooling plate for prismatic cells |
| Cooling type | liquid cooling |
| Structure | flow channel upper plate /covered down plate / CNC connctors / plastic quick connectors |
| Application | household power energy system & industrial energy storage system |
| Energy storage system | Energy storage on power generation Energy storage on power transmission and distribution Energy storage on power consumption |
Cooling solution :
1.Liquid cooling BESS Module
2.Liquid cooling BESS Pack
3.Liquid cooling BESS Rack
4.Liquic cooling BESS container
Using liquid cooling plates, household energy storage manufacturers gain benefits in multiple places:
1. Make ESS racks into more compacted size, so power density increased, as well as land utilization.
2. Having much increased heat dissipation performance , so system runs with more reliability.
3. Energy saving than using HVAC
4. Lower cost in installation
With very rich experience in making cooling plates for battery packs.Below are the strength from us that you can rely on:
1. Aid in cooling components design feasibility
2. Proven solutions for both prismatic and cylindrical cells
3. Capability in doing DVP with client
4. Fast support in Prototype making
Company :
Trumony Aluminum Limited brings real value to customers with lean production management, strict and stable quality system and consultative market service.
Trumony mainly provides customers with thermal management related services and products. Its services include battery thermal management solutions, liquid cooling system development, liquid cooling system design, liquid cooling materials, liquid cooling components, and liquid cooling assemblies. For products mainly include liquid-cooling components for power battery packs,liquid-cooling components for energy storage battery packs, liquid-cooling components for high heat flux density heat exchange, and new liquid-cooling heat exchange components.
FAQ :
1. What BESS cooling solution you can provide ?
A: We have 4 kinds of battery cooling type for your bess battery pack. Aluminum snake tube for cylindrical shaped of cells. Aluminum brazed cooled plate for prismatic cells ,aluminum micro channel plates for pouches and aluminum roll bonded panels .
2.What the alloy and temper of your water cooling plate ？
A:The aluminum alloy is 3000,6000 and temper is O-H112.
3.What the process technology to do the liquid cold plate or coolant channles ?
A:Aluminum extrusion process , vacuum brazing process, roll bonded process and we also have CNC center.
4.Do you support customized prototype for battery energy storage system cooling solution ?
A:Sure, we can produce the aluminum liquid cooling plate as your design. If just at the development stage, our existing cooled plate heat sinks are available for checking.
If you are interested in our aluminum cooling plate for energy storage system cooling , pls send inquiry to us and we can arrange online meeting to discuss more details~~
