Electric Vehicle Four Wheels SUV Battery Module Cooler System Brazed Welding Aluminum Liquid Cooling Plates

Availability:
Quantity:
  • TR-CY-T111

  • Trumony

  • TRCYT111

SUV Battery Module Cooler System

With rapid iterative material innovation, simplified product design and a constantly improved manufacturing process,Trumony has made significant breakthroughs in BMS to cool the battery pack to guarantee the driving safety .The aluminum liquid cooling plate what we make for the EV battery pack , it is made by stamping process and combined via vacuum brazing process. The water / glycol as the coolant will bring out the excess heat to make sure the battery pack in safe condition.


Specification

Item
SUV battery module cooling plate
Size
As your design
Thickness(after stamping)
5-8mm
Cooling type
liquid cooling
Structure
Stamped cold plate /aluminum down plate / inlet/outlet/ plastic quick connectors
Application
prismatic battery or pouch cells
Liquid cold plate type
cold plate cooling plate for EV, stamped cold plate for ESS,harmonica shaped cooling tube plate , EV battery snake cooling tube ,aluminum roll bonded plate


Liquid cooling plate for commercial application :

1-Road passenger transport cooling solution

2-Urban delivery solution: light trucks battery pack cooling plate, mini buses cells cooling panel , and minivans liquid cooling plate

3-Heavy-duty transport battery cold solution:

4-Urban street cleaning vechile battery pack cooling : covering a variety of vehicle types including electric washing vehicles, electric washing and sweeping vehicles, electric garbage trucks and other vehicles



FAQ :
1. What battery module cooling solution you can provide ?
A: We have 4 kinds of battery cooling type for your battery pack. Aluminum snake tube for cylindrical shaped of cells. Aluminum brazed cooled plate for prismatic cells ,aluminum micro channel plates for pouches and aluminum roll bonded panels .


2.What the alloy and temper of your water cooling plate ?
A:The aluminum alloy is 3000,6000 and temper is O-H112.

3.What the process technology to do the cold plate or coolant channles ?
A:Aluminum extrusion process , vacuum brazing process, roll bonded process and we also have CNC center.

4.Do you support customized prototype for battery pack module ?
A:Sure, we can produce the aluminum liquid cooling plate as your design. If just at the development stage, our existing cooled plate heat sinks are available for checking.



If you are interested in our aluminum cooling plate for electric battery battery pack , pls send iqnuiry to us and we can arrange online meeting to discuss more details~~

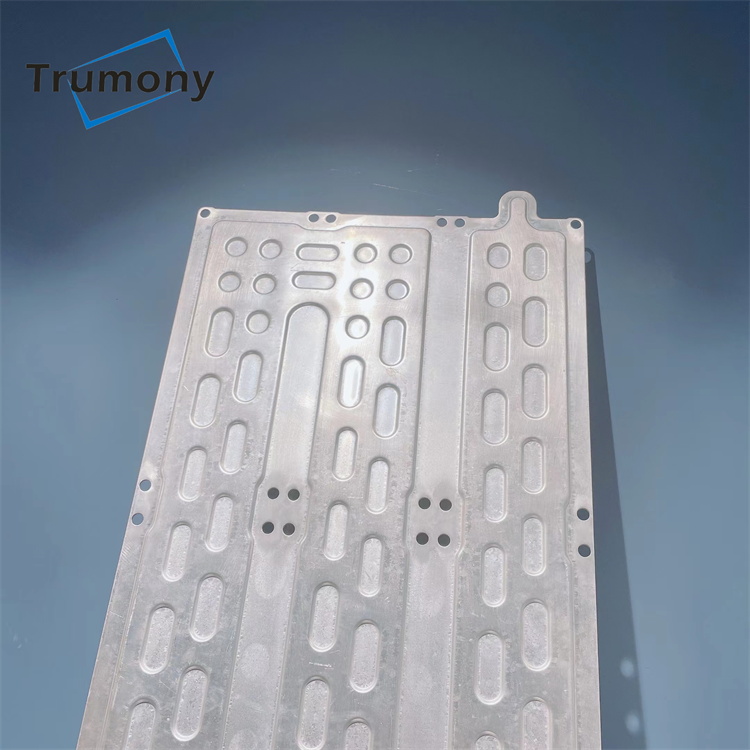

Liquid Cooling Plate for ESS (1)

Liquid Cooling Plate for ESS (3)
