TR-CY-T092
Trumony
TRCYT092

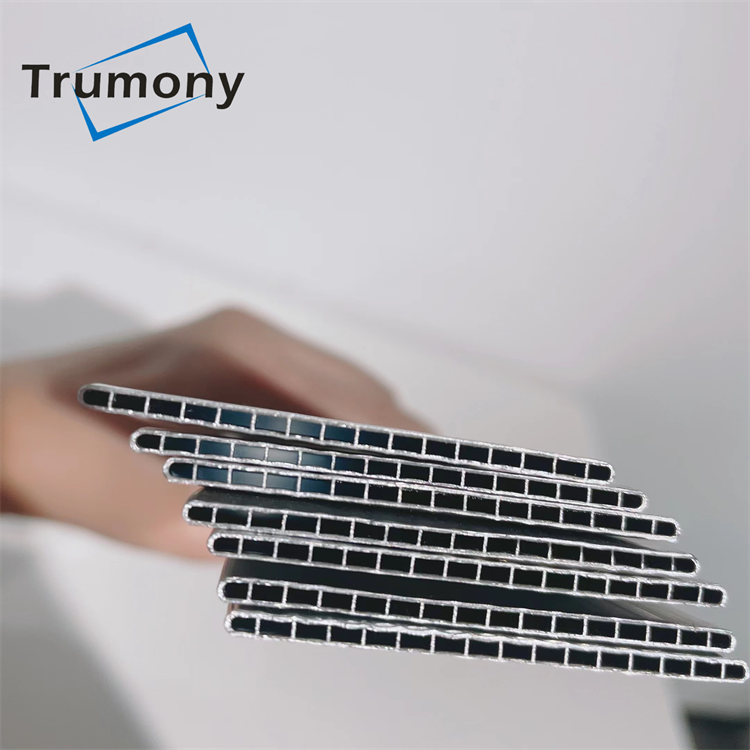

Aluminum Micro-multiport tube is the high-tech aluminum products under the process of hot extrusion from refined aluminum ingot and then zinc spraying for anti-corrosion.The aluminum tube is the core materials of new generation parallel flow air conditioning heat exchangers. The radiator tube is outstanding in enviromental-friendly, efficient, energy-saving and cost reduction and was approved vividly in automobile air conditioning system. With restriction and prohibition of the application of the traditional refrigerant, it is a trend that household and commerical air conditioning heat exchanger needs revolution.
Commonly used material chemical composition
| No. | Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | V | Ti |
| 1 | 1050 | ≤0.25 | ≤0.40 | ≤0.05 | ≤0.05 | ≤0.05 | --- | ≤0.05 | ≤0.05 | ≤0.03 |
| 2 | 1100 | ≤0.95(Si+Fe) | 0.05-0.20 | ≤0.05 | --- | --- | ≤0.10 | --- | --- | |
| 3 | 3102 | ≤0.40 | ≤0.70 | ≤0.10 | 0.05-0.40 | --- | --- | ≤0.30 | --- | ≤0.10 |
| 4 | 3003 | ≤0.15 | ≤0.15 | ≤0.01 | 0.90-1.10 | ≤0.03 | ≤0.03 | ≤0.05 | ≤0.05 | ≤0.05 |
Supply state and mechanical properties
| Alloy | Temper | Tensile Strength | Yield Strength | Elongation |
| 1050 | O/F/H111/H112 | ≥65MPa | ≥20MPa | ≥25% |
| 1100 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3102 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3003 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
Specification
1) Grade : 1100/LF21/3102/3003/9xxx
6) Thickness of zinc spraying: 3g/mm2-20g/mm2
Properties:
Extruded Aluminum Tube(MPE)- which is used for automobile air conditioner condenser has larger internal section area, better effectiveness for heat transfer. At the same time, has the following properties:
1). Lower energy costs
2). Higher performance
3). Less space and weight
4). High corrosion and pressure resistance
5). High recycling value
6). Pressure drop and silent solution
Existing designs are available.
Alloy, temper ,size channel numbers,wall thickness are all customized as your request ~
