Vacuum Liquid Cooled Plate Inflatable Aluminum Soaking Plate for Automobile Vehicle

Our cooling plate widely use in Electric Vehicle/ New Energy Automobile/ Heavy duty/ Cars/ Marine battery cooling system.
Availability:
Quantity:
  • TR-T22121
  • Trumony
  • 202201121

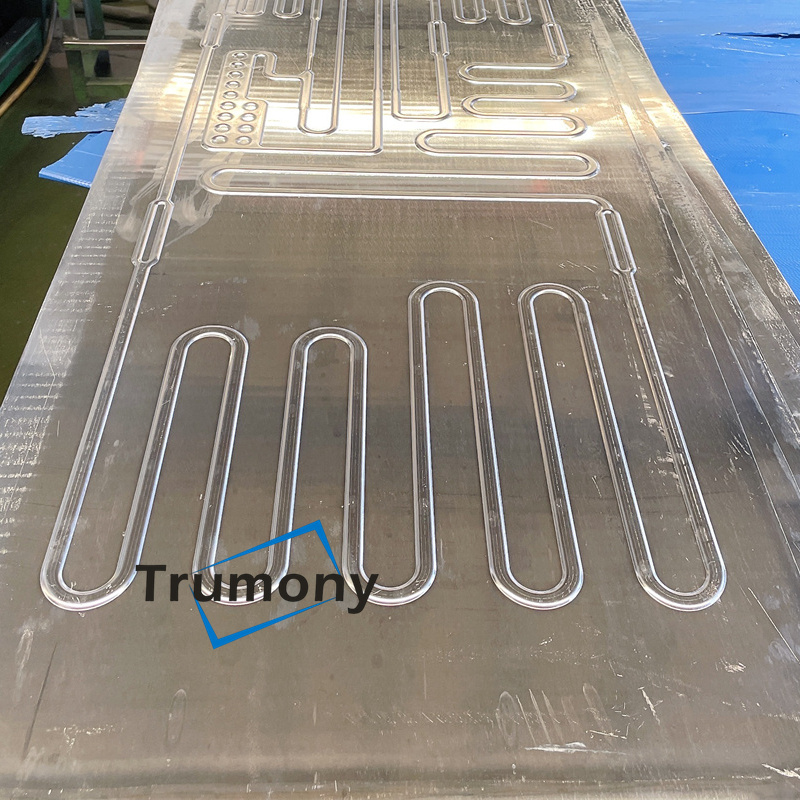

Vacuum Liquid Cooled Plate Inflatable Aluminum Soaking Plate for Automobile Vehicle

Inflatable aluminum soaking plate is a new type of soaking plate structure. It needs to use printing, rolling, inflation and other processes to manufacture a hollow aluminum plate shell, and then use vacuum, perfusion, sealing and other processes to manufacture a highly efficient Heat transfer vapor chamber.

Aluminum roll bond evaporator often used in refrigerator appliance. With the advantages of low cost and high efficiency, now it's also rapidly applied for EV and ESS battery cooling.


Item: Inflatable Aluminum Soaking Plate

Application: Refreigerator, Passenger cars, Household energy storage, Commercial energy storage

Structrure: Single side roll bond plate

                   Double side roll bond plate

                   Part Single roll bond plate

Process:

Materials preperation – cleaning – printing – rolling – annealing - inflating – punching –folding and sharpening  – welding – leakage testing – cleaning and drying – coating - visual inspection – packing

Size:

Thickness of aluminum material: 1.5~2.8mm
Thickness of finished roll bond plate: 1.1~2.5mm
Surface treatment: Spray treatment to prevent corrosion


We can provide more:

 1) Stamping type cooling plate for prismatic cells / battery pack.
 2) Extrusion snake tube for cylindrical cells, such as 21700, 18650, 3270, 4680 big cell.

 3) Extruded tube with manifold for soft battery pack.

 4) Roll bond plate for heating / cooling.

Our Advantages:

  1. Aid in cooling components design feasibility

  2. Proven solutions for both prismatic and cylindrical cells

  3. Capability in doing DVP with client

  4. Fast support in prototype making


FAQ

Q: What is your terms of payment ?

A: Normally 30% TT in advance, balance paid before shipment.

Q: How long does it take for samples and mass production?

A: Usually it will take 15-20 days for new moulds and free samples (within 5kg), after confirmation, 25-30 days for mass production.

Q: OEM/ODM available?

A: Yes,we can!

Q: Can you assist in design?

A: Yes, we can! We have a strong and experienced design team.

Q: Could you provide sample?

A: Yes, We are honored to offer you samples for quality check.

Q: Is sample order accepted?

A: Yes,we accept sample order and we can provide design service!

cooling plate combocooling plate combo 1



About us

Founded in 2006, is a leading supplier of critcal heat transfer material for automobile and industrial cooling sectors. Using advanced equipment and technology, Trumony Aluminum Ltd provides products cover 1,3,4,5,6,7 and 8 series aluminum alloy, brazing aluminum fins, steel/aluminum cladded tubes, high frequency welded tubes and headers and so on many varietes, many specificatons of the product series.
