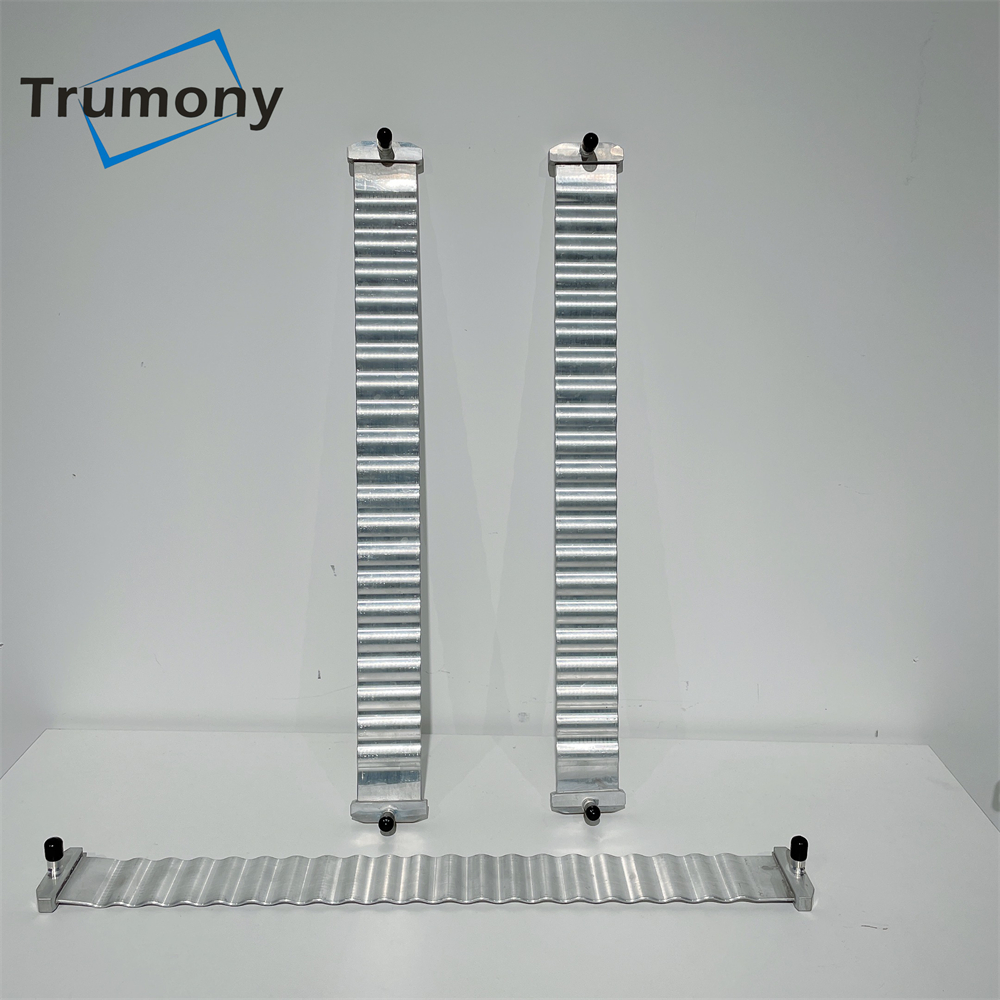

Water Cooled Tube Aluminum Cooling Ribbon for Automobile Battery
Using liquid as the cooling medium, the heat generated by the battery is taken away by convection heat exchange.
Common liquids that can be used as cooling media are water, ethylene glycol aqueous solution, pure ethylene glycol, air conditioning refrigerant and silicone oil.
The liquid cooling medium has high heat transfer coefficient, large specific heat capacity, fast cooling speed, uniform heat dissipation, and the structure of the liquid cooling system is relatively compact. The structure of liquid-cooled equipment is more complicated than that of air-cooled equipment, and the requirements for product quality and sealing design are quite strict. When the battery density is high, liquid cooling is suitable.
That's the reason why liquid cooling solution is fashion in ESS & EV industries.
Detials:
| Structure | Snake tube + manifold |
| Thickness | Per your request |
| Width/Length | According to your boundary size |
| Surface treatment | Zinc Spray, Insulation coating, Bare |
| Applications |
|
Features: |
1. Flexible design solutions for all kinds of batteries |
2. Rich manufacturing knowledge in sampling, brazing and welding. |
3. Better temperature control at battery contact surface |
4. Wide range of mounting and connection solutions |
5. Customized plate design according to your module layout |
We have R&D department, so we can provide the design service. Necessary information for design cooling plate:
Medium coolant
Inlet/outlet temperature
Liquid flow path
Work temperature
Size
Type of battery
End application
According to various applications and requirements of thermal management, we can provide a range of battery cooling solutions.
1) Stamping type cooling plate for prismatic cells / battery pack.
2) Extrusion snake tube for cylindrical cells, such as 21700, 18650, 3270, 4680 big cell.
3) Extruded tube with manifold for soft battery pack.
4) Roll bond cooling plate for heating / cooling.
Our Advantages:
1) Flexible design solutions for all kinds of battery pack.
(According to your module provide customized cooling plate)
2) Design service, we have R&D department, can do design finalization, flow and heat simulation.
3) CNC centre to make customized inlet/outlet connector.
4) Thermal Interface Material, such as thermal silicone pad, Insulation coating etc.
FAQ
A: Normally 30% TT in advance, balance paid before shipment.
Q: How long does it take for samples and mass production?
A: Usually it will take 15-20 days for new moulds and free samples (within 5kg), after confirmation, 25-30 days for mass production.
Q: OEM/ODM available?
A: Yes,we can!
Q: Can you assist in design?
A: Yes, we can! We have a strong and experienced design team.
Q: Could you provide sample?
A: Yes, We are honored to offer you samples for quality check.
Q: Is sample order accepted?
A: Yes,we accept sample order and we can provide design service!
