18650 Battery Pack Aluminum Snake Cooling Cold Pipe For Electric Smart Car

Availability:
Quantity:
  • TR-CY-T124

  • Trumony

  • TRCYT124

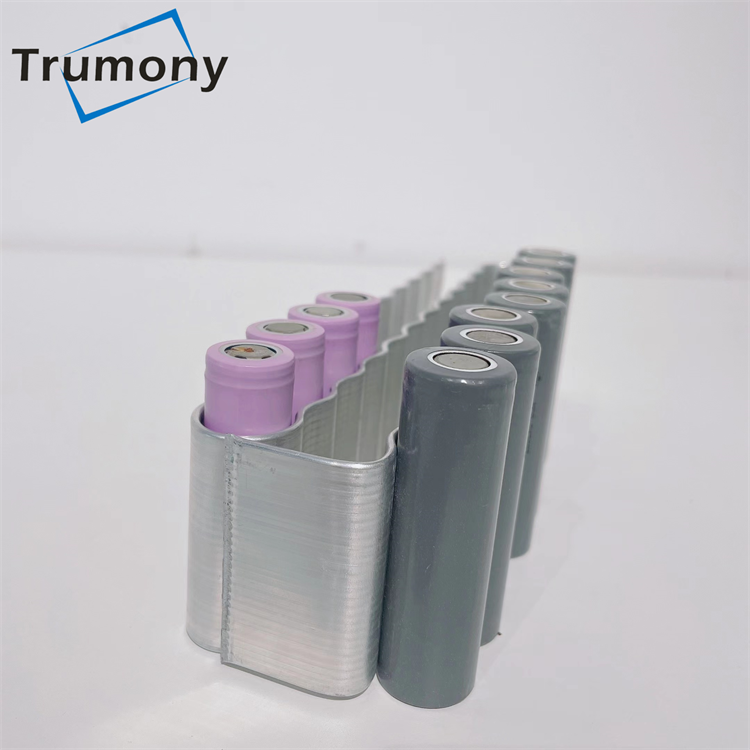

18650 Battery Pack Aluminum Snake Cooling Cold Pipe For Electric Smart Car

The aluminum micro channel cooling ribbon for 18650 abttery pack ,it is deisgned for small battery module just 24 cells. We make the snake tube through aluminum extrusion process ,bending and snake-shaping .Like Tesla Model S / Model X, they use the similar aluminum cooling tube for the thermal management system . Obiviously , it achieve good performance and stable heat dissipation effect. Nowdays, more and more electric vehicle companies who use the cylindrical battery pack module, they are would like to use the same snake cooling tube for EV. Moreover, except the 18650 battery cooling pipe, trumony can provide 21700 battery pack cooling solution and 3270 battery cooling tube and 4680 cooing tube .


Specification

Item
18650 Battery Pack Cooling Tube
Size
As your design
Thickness
2.4mm,3mm
Cooling type
Liquid cooling
Structure
flow channel upper plate /covered down plate / CNC connctors / plastic quick connectors
Application
household power energy system & industrial energy storage system
Liquid cold plate type
cold plate cooling plate for EV, stamped cold plate for ESS,harmonica shaped cooling tube plate , EV battery snake cooling tube ,aluminum roll bonded plate


As battery thermal management is very critical in an operation of EV. Here are a few things we are good at:

1. Tooling development — we do it in house, so we can make initial testing prompt and accurate.
2. Making all kinds of heat exchangers — we can do customized shape, to make the parts fit into different packs.
3. Assistance in parts design — we have experienced engineer team, they can provide professional suggestions regarding feasibility of carrying out new designs.



Company Information

We, Trumony aluminium limited is committed to providing clean aluminium solution to the market. “Through the discovery and creation, to bring value to customers” is the company philosophy.”Trust in Harmony” is the company culture. Now, Through years of developing, now we are widely engaged in transportation, heat exchange,cable,packaging,construction,electronics,environmental protection and other files,apart from our current production, we are also actively developing new aluminium material and searching for customers solutions which is best suited for different industries to meet the precise needs of customers. Future we hope through our daily work, we could promote environmental protection, reduce social cost,promote employment and family harmony,thus our own value could also be realized.



FAQ :
1. What battery module cooling solution you can provide ?
A: We have 4 kinds of battery cooling type for your battery pack. Aluminum snake tube for cylindrical shaped of cells. Aluminum brazed cooled plate for prismatic cells ,aluminum micro channel plates for pouches and aluminum roll bonded panels .


2.What the alloy and temper of your water cooling plate ?
A:The aluminum alloy is 3000,6000 and temper is O-H112.

3.What the process technology to do the cold plate or coolant channles ?
A:Aluminum extrusion process , vacuum brazing process, roll bonded process and we also have CNC center.

4.Do you support customized prototype for battery pack module ?
A:Sure, we can produce the aluminum liquid cooling plate as your design. If just at the development stage, our existing cooled plate heat sinks are available for checking.



If you are interested in our aluminum cooling plate for battery energy storage system , pls send iqnuiry to us and we can arrange online meeting to discuss more details about the liquid cooling plates~~
