TR-CY-T157
Trumony
TRCYT157

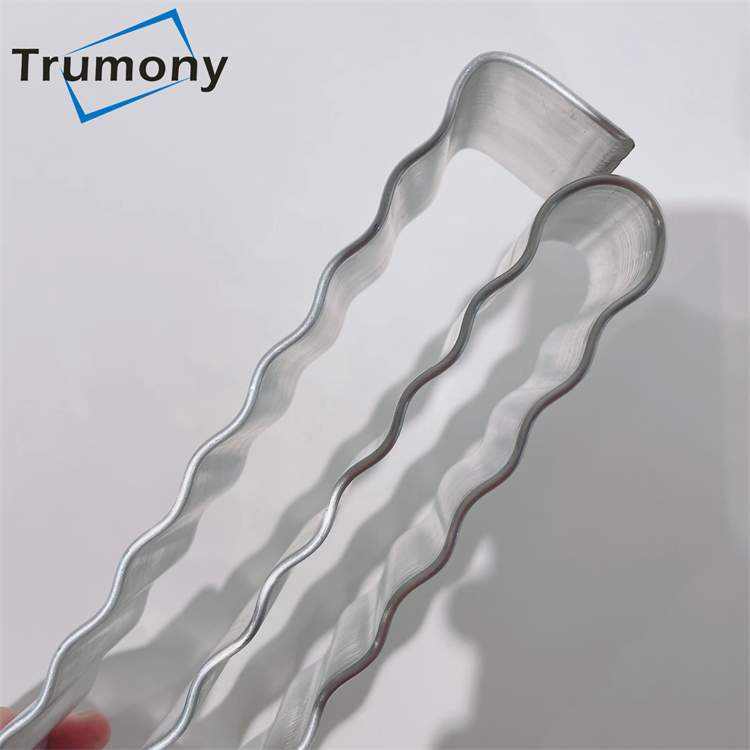

21700 Electric Vehicle Cooling Systems with cooling tubes
The new energy vehicle cylindrical battery water cooling tube is widely used for thermal exchange to cool the batteries, the shape and size can be customized to regulate the temperature of the cylindrical battery with mechanical and thermal interfaces.The inlet and outlet fittings can be installed, then the liquid flows in and out to reduce the temperature.
Specification
| Item | Lithium-ion cylindrical battery cooling tube |
| Size | 2.4*50mm,3*55mm |
| Thickness | 2.4mm,3mm |
| Cooling type | Water / glycol or as your request |
| Structure | Cooling tube / connectors |
| Application | Electric vehicle : Classic commercial motor vehicle / Commercial motor vehicle(CMV)/Electric tractor trailer trucks/Electric freight trucks/ Electric industrial trucks/Electric pickup truck/ Electric School Bus/Electric buses Energy storage system IGBT Cooling solution |
| Liquid cold plate type | cold plate cooling plate for EV, stamped cold plate for ESS,harmonica shaped cooling tube plate , EV battery snake cooling tube ,aluminum roll bonded plate |
*****Key point of design
1-Specify the battery type: cylindrical cells / square cells or prismatic cells/ soft battery or pouch cells
2-Module boundary dimensions
3-Heat dissipation requirement
4-Design and prototype budget
5-All heat exchanger choice such as the connectors,plastic quick connectors,battery cooling plate installation
Advantages
◆ Experienced in providing design, optimization and thermal simulation for clients.
◆ Provide sample service and complete samples within about three weeks.
◆ Have own overall production line and process, most advanced equipment and high production automation, which can assure the good quality of products.
◆ Have good communication skills and establish close relationship with big oversea clients.
◆ Conduct technology innovation, R&D investment and laboratory construction.
◆ Expand production lines and increase capacity to meet delivery time of increased orders from various clients.
Company Information
We, Trumony aluminium limited is committed to providing clean aluminium solution to the market. “Through the discovery and creation, to bring value to customers” is the company philosophy.”Trust in Harmony” is the company culture. Now, Through years of developing, now we are widely engaged in transportation, heat exchange,cable,packaging,construction,electronics,environmental protection and other files,apart from our current production, we are also actively developing new aluminium material and searching for customers solutions which is best suited for different industries to meet the precise needs of customers. Future we hope through our daily work, we could promote environmental protection, reduce social cost,promote employment and family harmony,thus our own value could also be realized.
FAQ :
1. What battery module cooling solution you can provide ?
A: We have 4 kinds of battery cooling type for your battery pack. Aluminum snake cooling channel tube for cylindrical cells. Brazed cold plate for prismatic cells ,aluminum micro channel plates for soft package cells and aluminum roll bonded panels .
2.What the alloy and temper of your water cooling plate ？
A:The aluminum alloy is 3000,6000 and temper is O-H112.
3.What the process technology to do the cold plate or coolant channles ?
A:Aluminum extrusion process , vacuum brazing process, roll bonded process and we also have CNC center.
4.Do you support customized prototype for battery pack module ?
A:Sure, we can produce the aluminum liquid cooling plate as your design. If just at the development stage, our existing cooled plate heat sinks are available for checking.
If you are interested in our aluminum cooling plate for battery energy storage system , pls send iqnuiry to us and we can arrange online meeting to discuss more details about the liquid cooling plates~~
