Advanced Lithium Ion Battery Liquid Cooling System in Electric Vehicle
EV Battery Cooling systems typically feature a liquid cooling loop specifically designed to be the most efficient method of heat transfer in the smallest, lightest form factor possible. Added weight decreases EV battery range. Smaller EV battery cooling systems enable more room for other systems or less material and vehicle weight. Electric vehicle battery cooling plates mounted on battery modules bring cooled liquid near the module. The working fluid absorbs heat conducted into the cold plate from the module as it passes through. Heat is carried in the pumped liquid away from the battery pack for dissipation with a heat exchanger or radiator.
Specification
| Item | lithium battery cooling system |
| Size | As your request |
| Thickness | 6-8mm |
| Cooling type | Water / glycol or as your request |
| Structure | Upper plate / down plate/ connectors |
| Application | Electric vehicle : Classic commercial motor vehicle / Commercial motor vehicle(CMV)/Electric tractor trailer trucks/Electric freight trucks/ Electric industrial trucks/Electric pickup truck/ Electric School Bus/Electric buses Energy storage system IGBT Cooling solution |
| Liquid cold plate type | cold plate cooling plate for EV, stamped cold plate for ESS,harmonica shaped cooling tube plate , EV battery snake cooling tube ,aluminum roll bonded plate |
*****Key point of design
1-Specify the battery type: cylindrical cells / square cells or prismatic cells/ soft battery or pouch cells
2-Module boundary dimensions
3-Heat dissipation requirement
4-Design and prototype budget
5-All heat exchanger choice such as the connectors,plastic quick connectors,battery cooling plate installation
Advantages
◆ Experienced in providing design, optimization and thermal simulation for clients.
◆ Provide sample service and complete samples within about three weeks.
◆ Have own overall production line and process, most advanced equipment and high production automation, which can assure the good quality of products.
◆ Have good communication skills and establish close relationship with big oversea clients.
◆ Conduct technology innovation, R&D investment and laboratory construction.
◆ Expand production lines and increase capacity to meet delivery time of increased orders from various clients.
Company Information
Trumony Aluminum Limited was established in 2006 , with decades of rich experience, Trumony are focusing on providing battery pack heat exchanger component,which are including liquid cooling solution for power battery pack ,liquid cooling solution for energy storage system,liquid cooling solution for high heat flux density products and new liquid cooling solution.
Trumony headquarters is in Suzhou city and have 3 factories in Aning City ,Hefei city ,Anhui province , the third plant in suzhou city will be ready for mass production in Mid Dec.Our mission is Bringing science and technology to reality. In 2021, we have established deep cooperation with Shanghai Jiao Tong University and setted the Trumony Technology Limited , is devoted in R&D in thermal interface material .
Currently, Trumony has been exported to more than 50 countries and regions around the world, and the product performance fully meets customer procurement needs. In the future, Trumony is ambitious to provide its reliable and cost-effective solutions.
FAQ :
1. What battery module cooling solution you can provide ?

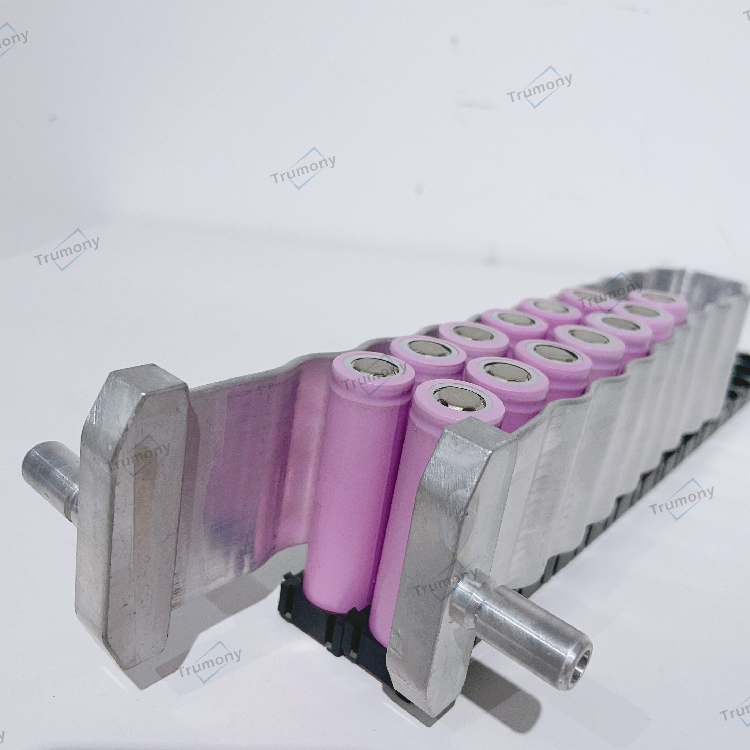

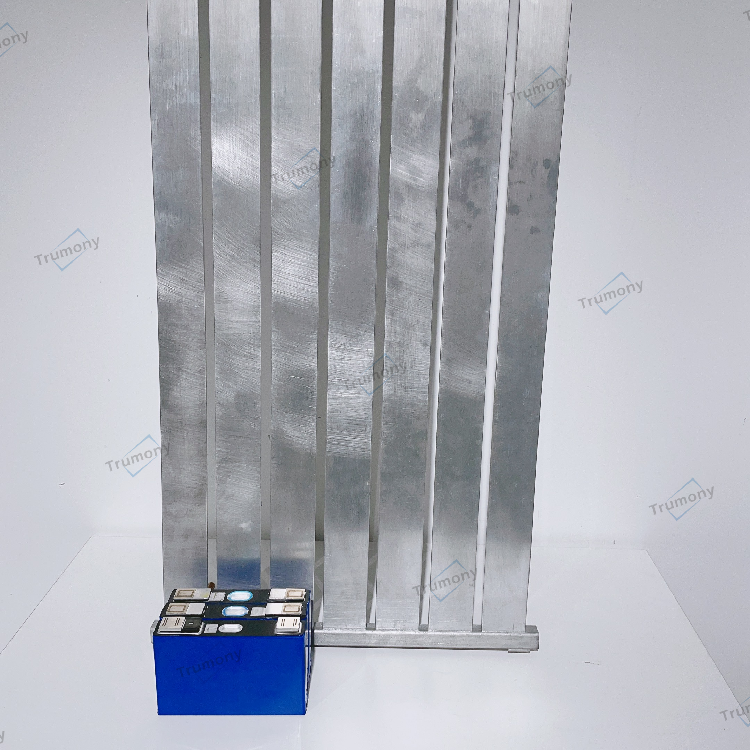

A: We have 4 kinds of battery cooling type for your battery pack. Aluminum snake cooling channel tube for cylindrical cells. Brazed cold plate for prismatic cells ,aluminum micro channel plates for soft package cells and aluminum roll bonded panels .
2.What the alloy and temper of your water cooling plate ？
A:The aluminum alloy is 3000,6000 and temper is O-H112.
3.What the process technology to do the cold plate or coolant channles ?
A:Aluminum extrusion process , vacuum brazing process, roll bonded process and we also have CNC center.
4.Do you support customized prototype for battery pack module ?
A:Sure, we can produce the aluminum liquid cooling plate as your design. If just at the development stage, our existing cooled plate heat sinks are available for checking.
If you are interested in our aluminum cooling tube for battery pack cooling system , pls send iqnuiry to us and we can arrange online meeting to discuss more details about the liquid cooling coolant tube~~
 |  |
