TR-CY-T123
Trumony
TRCYT123
Specification

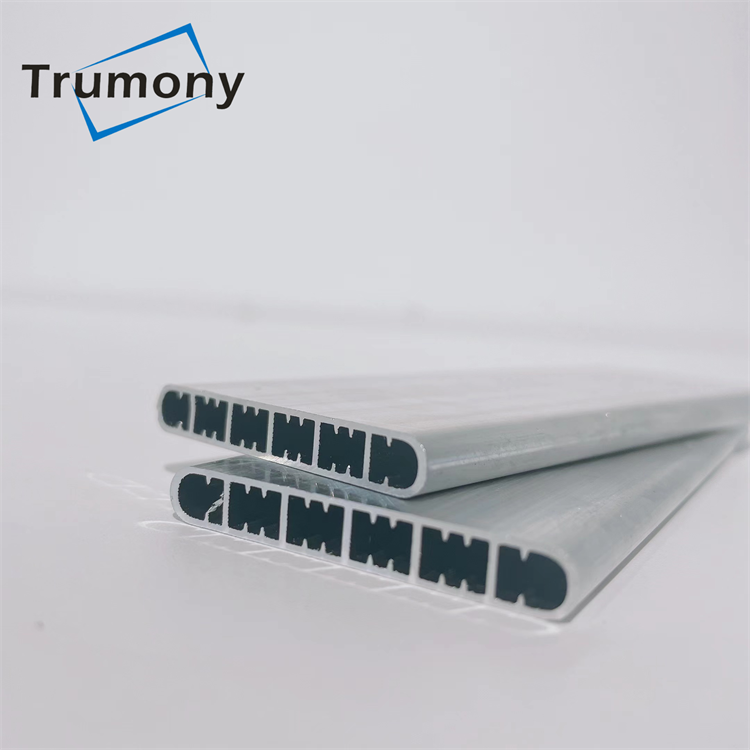

| Item | Aluminum micro channel tube |
| Size | Can be customized |
| Length | 200-4000mm |
| Wall thickness | ＞0.35mm |
| Thickness | 1mm-4mm |
| Zinc coating | As your request |
| Application | Radiator, condenser, evaporator, HAVC, AC, cooling solution |
Commonly used material chemical composition
| No. | Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | V | Ti |
| 1 | 1050 | ≤0.25 | ≤0.40 | ≤0.05 | ≤0.05 | ≤0.05 | --- | ≤0.05 | ≤0.05 | ≤0.03 |
| 2 | 1100 | ≤0.95(Si+Fe) | 0.05-0.20 | ≤0.05 | --- | --- | ≤0.10 | --- | --- | |
| 3 | 3102 | ≤0.40 | ≤0.70 | ≤0.10 | 0.05-0.40 | --- | --- | ≤0.30 | --- | ≤0.10 |
| 4 | 3003 | ≤0.15 | ≤0.15 | ≤0.01 | 0.90-1.10 | ≤0.03 | ≤0.03 | ≤0.05 | ≤0.05 | ≤0.05 |
Supply state and mechanical properties
| Alloy | Temper | Tensile Strength | Yield Strength | Elongation |
| 1050 | O/F/H111/H112 | ≥65MPa | ≥20MPa | ≥25% |
| 1100 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3102 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3003 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
Properties:
Extruded Aluminum Tube(MPE)- which is used for automobile air conditioner condenser has larger internal section area, better effectiveness for heat transfer. At the same time, has the following properties:
1). Lower energy costs
2). Higher performance
3). Less space and weight
4). High corrosion and pressure resistance
5). High recycling value
6). Pressure drop and silent solution
FAQ:
1. Do you accept customize the design of the aluminum micro channel tube ?
A: Yes, we accept the customized design of the micro-channel tube.
2.Do you have the existing design for our checking ?
A:Yes, you can tell us your requirement of the radiator tube and we will check if we have suitable size close to yours.
3.Does the aluminum multi-port tube can be done with zinc coating ?
A:Yes, we can do it no problem.
4.Where we can use the aluminum tube ?
A:The MPE is widely use for radiator, condenser ,evaporator and commerical air conditioner , car air conditioner and HAVC.
Company
Trumony Aluminum is a leading and professional manufacturer for aluminum products
Supported by more than 300 senior specialists and advanced technology, we specialize in hot casting, cold casting and aluminum production in our country with annual capacity of 200000 MT. Our product category mainly includes brazed aluminum strip/sheet, aluminum plate, aluminum strip, aluminum foil. Aluminum alloy sheet alloy 1***/3***/5***/6***/7*** series
We have great development in high science and technology-aluminum fin strip/sheet for brazed heating exchanger, which is mainly used into heating exchanger: Automotive radiator, condenser, evaporator, charge air cooler, oil cooler, air conditioning appliance and heaters. Our product is ranked top in domestic industry and the annual production reached 35000mt base of our modern standard workshop, advanced production and inspection equipment, the quality has approved by some famous enterprises who involving in heating exchanger industry in domestic and overseas market.
