Aluminum Heat Transfer Cylindrical Battery Cell Water Cooling Channel for Electric Car

Availability:
Quantity:
  • TR-CY-T108
  • Trumony
  • TRCYT108

Water cooling channel for electric car

Liquid cooling is the most popular cooling technology. It uses a liquid coolant such as water, a refrigerant, or ethylene glycol to cool the battery. The liquid goes through tubes, cold plates, or other components that surround the cells and carry heat to another location, such as a radiator or a heat exchanger. Components carrying the liquid prevent direct electrical contact between the cells and the liquid coolant.Trumony aluminum limited can provide liquid cooling tube for 18650 cells, 21700 batteries and 4680 battery module pack. To enlarge the cooling area .The cooling pipe are made by aluminum extrusion, bending and snake shaped forming via toolings. We can customize the serpentine tube as your battery module layout and ev battery pack baundary size .Except the aluminum cooling pipe, we provide the water cooling plate, aluminum micro channels and roll bonded plate.


Specification:

Item Aluminum Cooling Channels
Alloy
3000,6000 aluminum
Tube Dimension
Customized
Design
Support
Application
Cylindrical EV battery pack , prismatic battery module
Service
Design, simulation, toolings , prototype, mass production


Battery cooling solution

1-Liquid cooling plate for EV battery pack

2-Aluminum micro channel cooling tube for 18650,21700,4680 cylindrical battery cell

3-Aluminum channel plate for pouch cell battery pack


FAQ :
1. What battery module cooling solution you can provide ?
A: We have 4 kinds of battery cooling type for your battery pack. Aluminum snake tube for cylindrical shaped of cells. Aluminum brazed cooled plate for prismatic cells ,aluminum micro channel plates for pouches and aluminum roll bonded panels .


2.What the alloy and temper of your water cooling plate ?
A:The aluminum alloy is 3000,6000 and temper is O-H112.

3.What the process technology to do the cold plate or coolant channles ?
A:Aluminum extrusion process , vacuum brazing process, roll bonded process and we also have CNC center.

4.Do you support customized prototype for battery pack module ?
A:Sure, we can produce the aluminum liquid cooling plate as your design. If just at the development stage, our existing cooled plate heat sinks are available for checking.

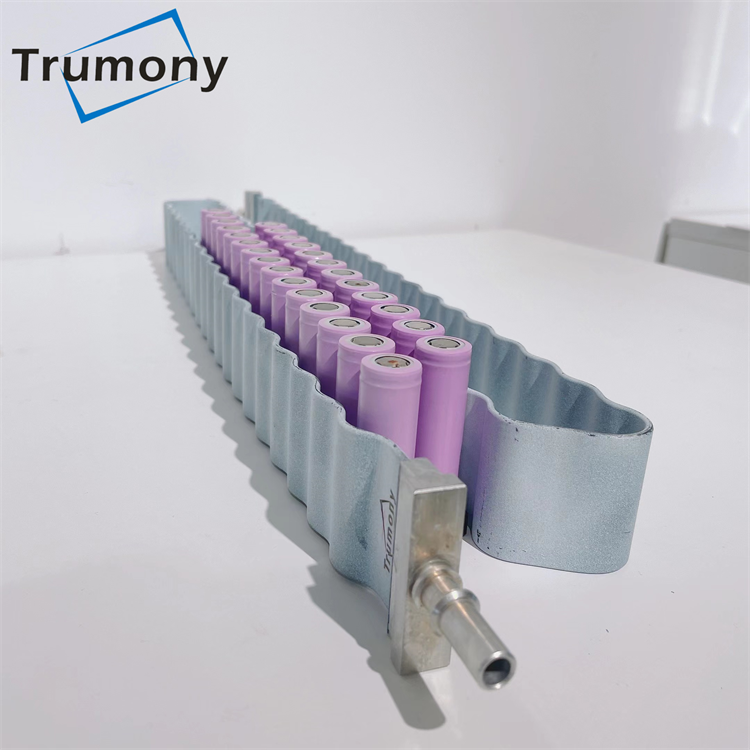

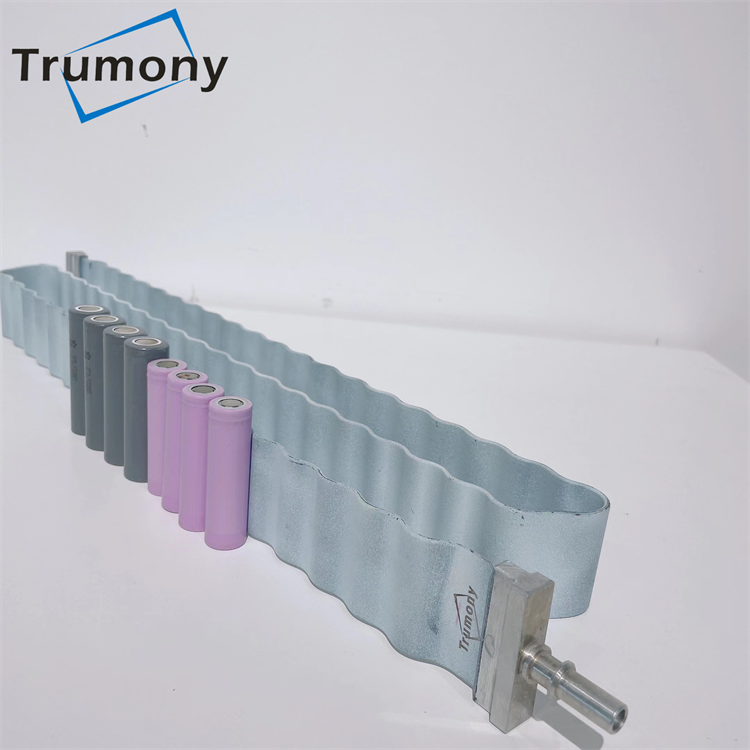

Lithium ion battery cooling tube for 18650,21700,4680 battery cells .

Cooling Tube 10

snake tube22
