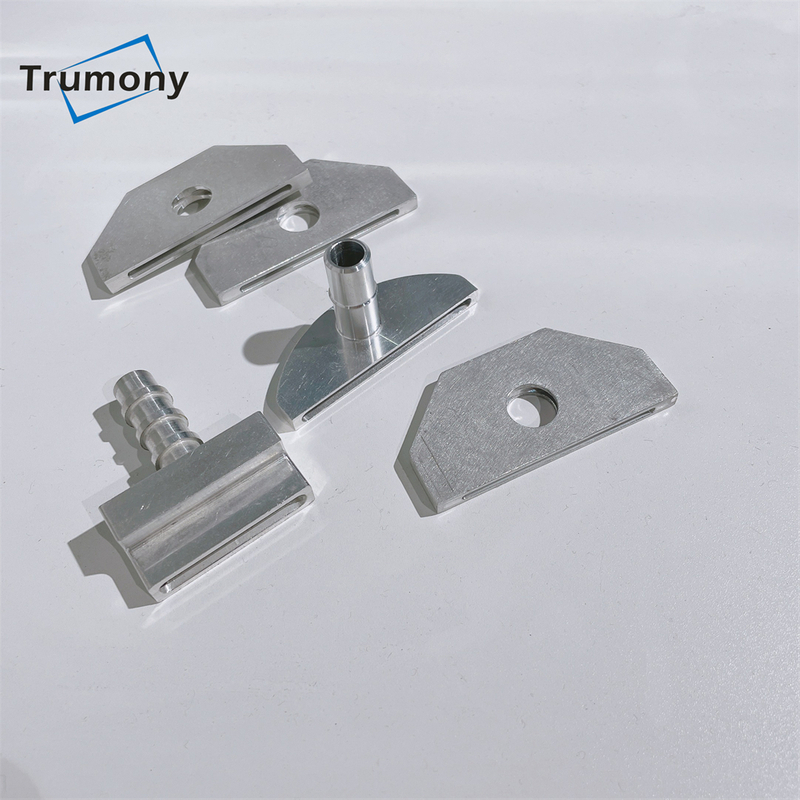

Aluminum Inlet Outlet Joint Cooling Tube Automobile Spare Parts CNC Machining Connector

Our company designs, makes and distributes heat exchangers for battery packs, which carrying cylindrical cells, prismatic cells or pouches.
Material:
Application:
Country of Origin:
Size of connector:
Availability:
Quantity:
  • TR-T22131

  • Trumony

  • 202201131

Aluminum Inlet Outlet Cooling Tube Automobile Spare Parts CNC Machining Connector

A battery cooling plate is a thin alumimum fabrication which includes flow channel path (coolant is pumped) and bottom plate. It's to provide maximum lithium-ion battery life and optimum performance. Connector is a necessary part for connecting with the external pipeline.


Item


CNC machining connector

Specifications


 Common: 20*20mm

 Per your request

Processing


Extrusion, welding, brazing, coating..

Accrssories package

 Quick connector, water line fitting, water distributer, manifold, inlet, outlet etc.

Design Service

 YES


Test Ability


Chemical Composition Test

YES

Pysical Test & Optics Test

YES

Roughness Test & Hardness Test

YES

Elongation Test

YES

Salt Spray Test

YES

Burst Test

YES

Nitrogen & Helium Test

YES

Flow Resistance Test

YES. Inside &outside corrosion test

Voltage Test

YES

Under Water Test

YES. Check the leakage for welding


We can provide more:

 1) Stamping type cooling plate for prismatic cells / battery pack.
 2) Extrusion snake tube for cylindrical cells, such as 21700, 18650, 3270, 4680 big cell.

 3) Extruded tube with manifold for soft battery pack.

 4) Roll bond plate for heating / cooling.

Our Advantages:

  1. Aid in cooling components design feasibility

  2. Proven solutions for both prismatic and cylindrical cells

  3. Capability in doing DVP with client

  4. Fast support in prototype making

  5. Thermal simulation

  6. Brazing technology

  7. Thermal Interface material

liquid cooling plate

FAQ

Q: What is your terms of payment ?

A: Normally 30% TT in advance, balance paid before shipment.

Q: How long does it take for samples and mass production?

A: Usually it will take 15-20 days for new moulds and free samples (within 5kg), after confirmation, 25-30 days for mass production.

Q: OEM/ODM available?

A: Yes,we can!

Q: Can you assist in design?

A: Yes, we can! We have a strong and experienced design team. Pls kindly send us your 3D drawing or boundry size of module.

Q: Could you provide sample?

A: Yes, We are honored to offer you samples for quality check.

Q: Is sample order accepted?

A: Yes,we accept sample order and we can provide design service!

cooling plate combocooling plate combo 1



About us

Founded in 2006, is a leading supplier of critcal heat transfer material for automobile and industrial cooling sectors. Using advanced equipment and technology, Trumony Aluminum Ltd provides products cover 1,3,4,5,6,7 and 8 series aluminum alloy, brazing aluminum fins, steel/aluminum cladded tubes, high frequency welded tubes and headers and so on many varietes, many specificatons of the product series.
