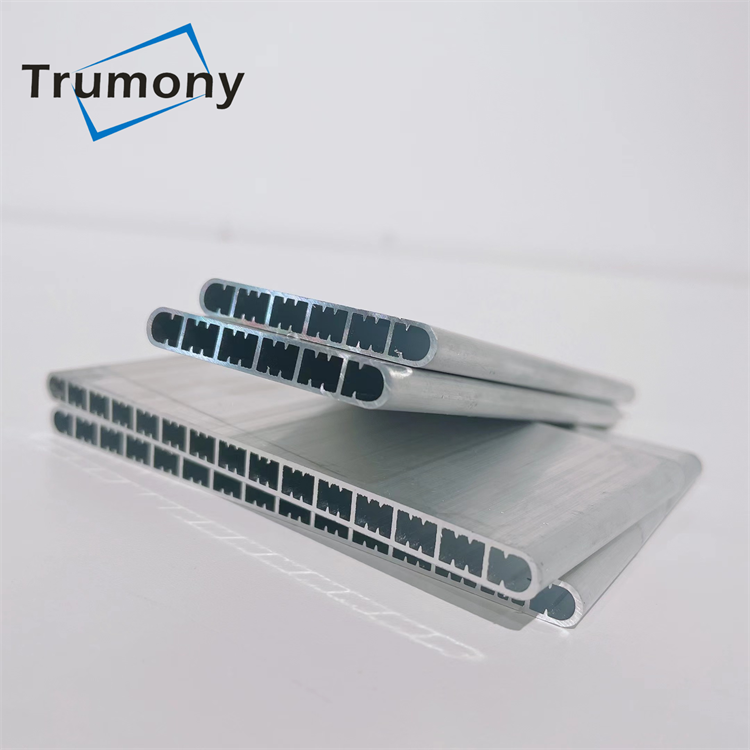

Aluminum heat exchanger tube is also called multi-port extrusion, this flat and rectangular extruded tube is made of several channels that increase the heat transfer through a higher surface per volume ratio.Micro-channel tubes are available in various sizes and alloys, ensuring the best properties for the purpose required, and can be delivered with a coating, ready for assembly and oven brazing.
Specification
| Item | Aluminum micro channel tube |
| Size | Can be customized |
| Length | 200-4000mm |
| Wall thickness | ＞0.35mm |
| Thickness | 1mm-4mm |
| Zinc coating | As your request |
| Application | Radiator, condenser, evaporator, HAVC, AC, cooling solution |
Commonly used material chemical composition
| No. | Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | V | Ti |
| 1 | 1050 | ≤0.25 | ≤0.40 | ≤0.05 | ≤0.05 | ≤0.05 | --- | ≤0.05 | ≤0.05 | ≤0.03 |
| 2 | 1100 | ≤0.95(Si+Fe) | 0.05-0.20 | ≤0.05 | --- | --- | ≤0.10 | --- | --- | |
| 3 | 3102 | ≤0.40 | ≤0.70 | ≤0.10 | 0.05-0.40 | --- | --- | ≤0.30 | --- | ≤0.10 |
| 4 | 3003 | ≤0.15 | ≤0.15 | ≤0.01 | 0.90-1.10 | ≤0.03 | ≤0.03 | ≤0.05 | ≤0.05 | ≤0.05 |
Supply state and mechanical properties
| Alloy | Temper | Tensile Strength | Yield Strength | Elongation |
| 1050 | O/F/H111/H112 | ≥65MPa | ≥20MPa | ≥25% |
| 1100 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3102 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3003 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
Properties:
Extruded Aluminum Tube(MPE)- which is used for automobile air conditioner condenser has larger internal section area, better effectiveness for heat transfer. At the same time, has the following properties:
1). Lower energy costs
2). Higher performance
3). Less space and weight
4). High corrosion and pressure resistance
5). High recycling value
6). Pressure drop and silent solution
FAQ:
1. Do you accept customize the design of the aluminum micro channel tube ?
A: Yes, we accept the customized design of the micro-channel tube.
2.Do you have the existing design for our checking ?
A:Yes, you can tell us your requirement of the radiator tube and we will check if we have suitable size close to yours.
3.Does the aluminum multi-port tube can be done with zinc coating ?
A:Yes, we can do it no problem.
4.Where we can use the aluminum tube ?
A:The MPE is widely use for radiator, condenser ,evaporator and commerical air conditioner , car air conditioner and HAVC.
