TR-CY-T114
Trumony
TRCYT114

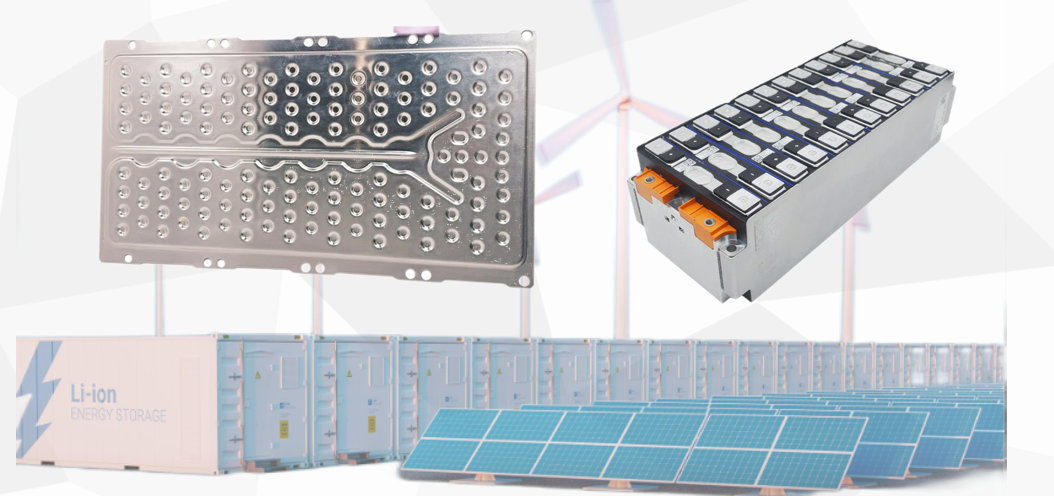

BESS Battery Energy storage system cooling plate
Battery energy storage cooling plate is one of the biggest challenges facing the world today, BESS is expected to play an very important role in the integration of increasing levels for renewable energy (RE) sources, while the related battery thermal management systems (BTMS) need to be up-grated with the new technologies.
Along with the developement of electric vechile battery pack cooling , the ESS (Energy Storage System) cooling solutions has been changed from traditional natural air cooling to air conditioners, and then to liquid cooling plate（Liquid cold Plate）, which is widely used currently for various applications.
Specification
| Item | BESS cooling plate |
| Size | As your design |
| Thickness(after stamping) | 8mm |
| Cooling type | water cooling |
| Structure | flow channel upper plate /covered down plate / CNC connctors / plastic quick connectors |
| Application | household power energy system & industrial energy storage system |
| Liquid cold plate type | cold plate cooling plate for EV, stamped cold plate for ESS,harmonica shaped cooling tube plate , EV battery snake cooling tube ,aluminum roll bonded plate |
Using liquid cooling plates, ESS manufacturers gain benefits in multiple places:
1. Make ESS racks into more compacted size, so power density increased, as well as land utilization.
2. Having much increased heat dissipation performance , so system runs with more reliability.
3. Energy saving than using HVAC
4. Lower cost in installation
With very rich experience in making cooling plates for battery packs.Below are the strength from us that you can rely on:
1. Aid in cooling components design feasibility
2. Proven solutions for both prismatic and cylindrical cells
3. Capability in doing DVP with client
4. Fast support in Prototype making
FAQ :
1. What battery module cooling solution you can provide ?
A: We have 4 kinds of battery cooling type for your battery pack. Aluminum snake tube for cylindrical shaped of cells. Aluminum brazed cooled plate for prismatic cells ,aluminum micro channel plates for pouches and aluminum roll bonded panels .
2.What the alloy and temper of your water cooling plate ？
A:The aluminum alloy is 3000,6000 and temper is O-H112.
3.What the process technology to do the cold plate or coolant channles ?
A:Aluminum extrusion process , vacuum brazing process, roll bonded process and we also have CNC center.
4.Do you support customized prototype for battery pack module ?
A:Sure, we can produce the aluminum liquid cooling plate as your design. If just at the development stage, our existing cooled plate heat sinks are available for checking.
If you are interested in our aluminum cooling plate for battery energy storage system , pls send iqnuiry to us and we can arrange online meeting to discuss more details about the liquid cooling plates~~
