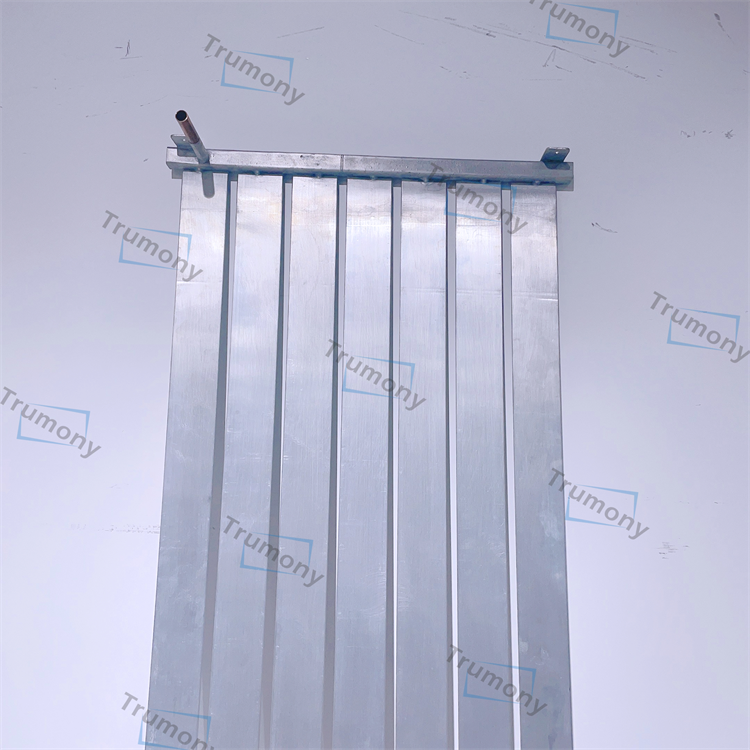

Customized High Performance Bottom Cooling EV Battery Cooling Plates
EV Battery Cooling Plates offers a full range of innovative battery cold plate solutions to meet the diverse needs of EV battery pack architectures. Laser welded extruded designs, and laser welded hydroformed cold plates are produced with a fraction of the energy consumption compared to the traditional brazed or roll bond cold plates.
For passenger, commercial, and logistics vehicles, heavy equipment and other power battery application, our project team will provide exploration, design, simulation, optimization, molding, proofing, delivering, system integration and after-sale services according to the actual requirements of customers, which can be temperature difference, pressure drop, pressure resistance, internal flow channels and external connectors, etc. And brazed cold plates, machined cold plates, serpentine tubes, battery boxes and so on can be the end-product forms.
Specification
| Item | Battery cooling heat exchanger |
| Thickness | 1.6-3.5mm |
| Max.Width | 700mm |
| Max.Length | 2000mm |
| Cooling Type | Liquid cooling |
| Application | New energy vehicle, air conditioner, wine cabinet,refrigerator |
New Energy Automotive Liquid Cold Plate For Lithium Ion Battery Pack:
1-Aluminum vacuum brazing cold plate
2-Aluminum micro channel plate
3-Roll bonded cold plate
4-Plate-fin Type Heat Exchanger Liquid Cold Plate
5-Aluminum snake tube
FAQ :
1. What battery module cooling solution you can provide ?
A: We have 4 kinds of battery cooling type for your battery pack. Aluminum snake tube for cylindrical shaped of cells. Aluminum brazed cooled plate for prismatic cells ,aluminum micro channel plates for pouches and aluminum roll bonded panels .
2.What the alloy and temper of your water cooling plate ？
A:The aluminum alloy is 3000,6000 and temper is O-H112.
3.What the process technology to do the cold plate or coolant channles ?
A:Aluminum extrusion process , vacuum brazing process, roll bonded process and we also have CNC center.
4.Do you support customized prototype for battery pack module ?
A:Sure, we can produce the aluminum liquid cooling plate as your design. If just at the development stage, our existing cooled plate heat sinks are available for checking.
If you are interested in our aluminum cooling plate for electric battery battery pack , pls send iqnuiry to us and we can arrange online meeting to discuss more details~~
