High Efficiency Plate-fin Type Heat Exchanger Liquid Cold Plate
Trumony heat transfer adopts vacuum brazing technology without brazing agent, and fills the upper and lower heat conduction panels with zigzag heat exchange fins, which improves the heat transfer performance while improving the uniformity of the runner. The vacuum brazing molding process has the advantages of high surface cleanliness, good runnerness, strong corrosion resistance and low cost.
Specification
Item : Finned heat exchanger cold plate
Size : As your design
Design : as your application
Cooling type : Liquid cooling
Structure : flat cold plate /fin heat exchanger / cold plate /inlet/outlet/ plastic quick connectors
Application : prismatic battery or soft package cells
Plate type : cold plate cooling plate for EV, stamped cold plate for ESS,harmonica shaped cooling tube plate , EV battery snake cooling tube ,aluminum roll bonded plate .
New Energy Automotive Liquid Cold Plate For Lithium Ion Battery Pack:
1-Aluminum vacuum brazing cold plate
2-Aluminum micro channel plate
3-Roll bonded cold plate
4-Plate-fin Type Heat Exchanger Liquid Cold Plate
5-Aluminum snake tube
FAQ :
1. What battery module cooling solution you can provide ?
A: We have 4 kinds of battery cooling type for your battery pack. Aluminum snake tube for cylindrical shaped of cells. Aluminum brazed cooled plate for prismatic cells ,aluminum micro channel plates for pouches and aluminum roll bonded panels .
2.What the alloy and temper of your water cooling plate ？
A:The aluminum alloy is 3000,6000 and temper is O-H112.
3.What the process technology to do the cold plate or coolant channles ?
A:Aluminum extrusion process , vacuum brazing process, roll bonded process and we also have CNC center.
4.Do you support customized prototype for battery pack module ?
A:Sure, we can produce the aluminum liquid cooling plate as your design. If just at the development stage, our existing cooled plate heat sinks are available for checking.
If you are interested in our aluminum cooling plate for electric battery battery pack , pls send iqnuiry to us and we can arrange online meeting to discuss more details~~
Stamping cold plate
Snake tube for 21700 battery module

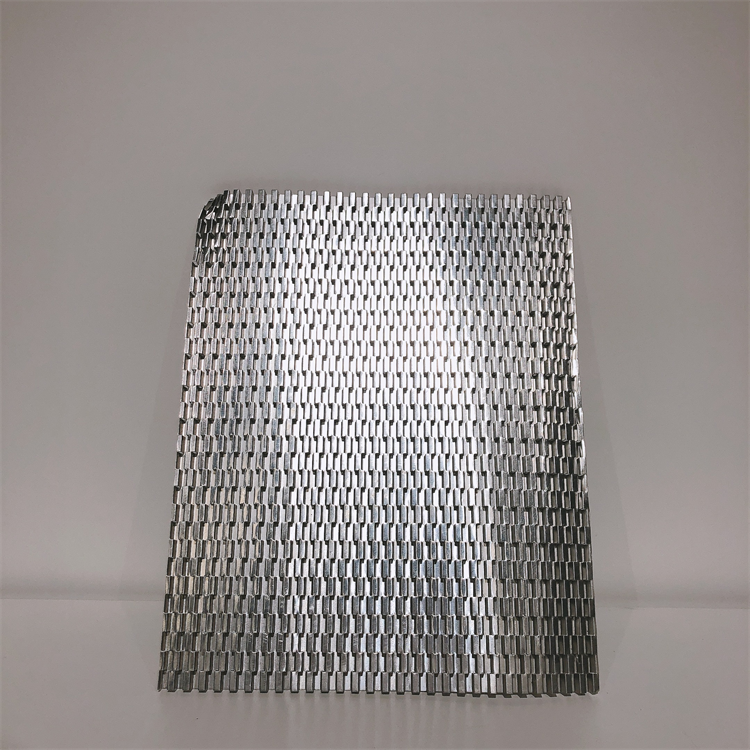

Fin Heat exchanger
