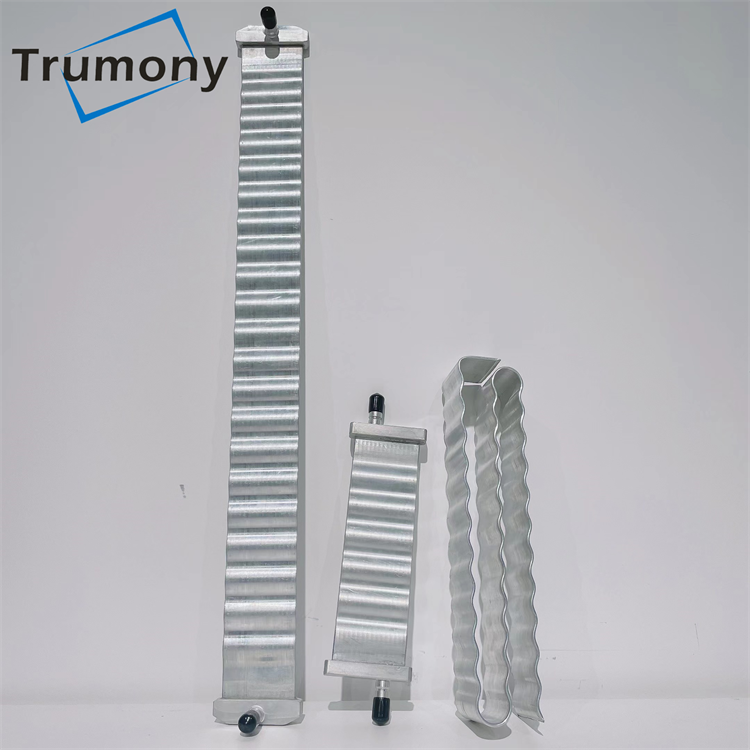

Mini-channel Liquid Cooled Tube Cylinder Based Battery Thermal Management for Cylindrical Lithium-ion Power Battery
Battery thermal management is a very active research focus in recent years because of its great essentiality for electric vehicles. In order to maintain the maximum temperature and local temperature difference in appropriate range, a new kind of cooling method for cylindrical batteries which is based on mini-channel liquid cooled cylinder. We named it snake cooling tube or cooling ribbon or serpentine tube.As what we all known the famous electric vehicle Tesla who always use this cooling solution for their cylindrical battery module. For BMW ,GM or other car companies use the aluminum stamping cold plate for prismatic battery module. For brand of BYD who use the aluminum cold plate for blade battery .
Specification
| Item | Battery thermal management cooling ribbon |
| Size | 2.4*50mm |
| Thickness | 2.4mm,3mm |
| Cooling type | Water / glycl |
| Structure | Cooling tube / connectors |
| Applicable energy cars | Classic commercial motor vehicle / Commercial motor vehicle(CMV)/Electric tractor trailer trucks/Electric freight trucks/ Electric industrial trucks/Electric pickup truck/ Electric School Bus |
| Liquid cold plate type | cold plate cooling plate for EV, stamped cold plate for ESS,harmonica shaped cooling tube plate , EV battery snake cooling tube ,aluminum roll bonded plate |
*****Key point of design
1-Specify the battery type: cylindrical cells / square cells or prismatic cells/ soft battery or pouch cells
2-Module boundary dimensions
3-Heat dissipation requirement
4-Design and prototype budget
5-All heat exchanger choice such as the connectors,plastic quick connectors,battery cooling plate installation
Company Information
We, Trumony aluminium limited is committed to providing clean aluminium solution to the market. “Through the discovery and creation, to bring value to customers” is the company philosophy.”Trust in Harmony” is the company culture. Now, Through years of developing, now we are widely engaged in transportation, heat exchange,cable,packaging,construction,electronics,environmental protection and other files,apart from our current production, we are also actively developing new aluminium material and searching for customers solutions which is best suited for different industries to meet the precise needs of customers. Future we hope through our daily work, we could promote environmental protection, reduce social cost,promote employment and family harmony,thus our own value could also be realized.
FAQ :
1. What battery module cooling solution you can provide ?
A: We have 4 kinds of battery cooling type for your battery pack. Aluminum snake tube for cylindrical shaped of cells. Aluminum brazed cooled plate for prismatic cells ,aluminum micro channel plates for pouches and aluminum roll bonded panels .
2.What the alloy and temper of your water cooling plate ？
A:The aluminum alloy is 3000,6000 and temper is O-H112.
3.What the process technology to do the cold plate or coolant channles ?
A:Aluminum extrusion process , vacuum brazing process, roll bonded process and we also have CNC center.
4.Do you support customized prototype for battery pack module ?
A:Sure, we can produce the aluminum liquid cooling plate as your design. If just at the development stage, our existing cooled plate heat sinks are available for checking.
If you are interested in our aluminum cooling plate for battery energy storage system , pls send iqnuiry to us and we can arrange online meeting to discuss more details about the liquid cooling plates~~
