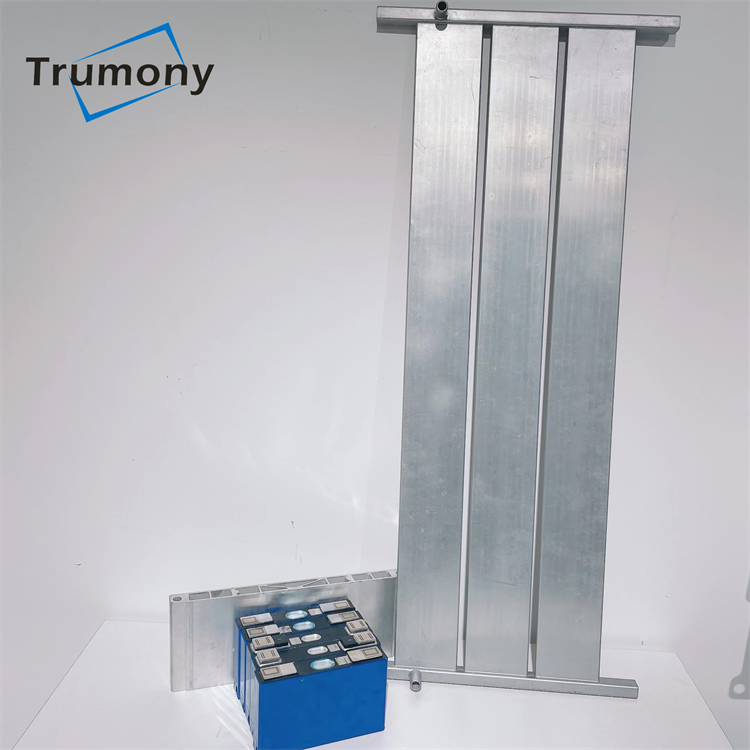

New Energy PACK System Heat Dissipation Harmonica Tubular Liquid Cold Plate
Harmonica tubular liquid cold plate has the advantages of low cost, light weight, relatively simple structure and high production efficiency, but due to its single runner, small contact area and thin pipe wall, its heat exchange effect is general and the load-bearing capacity is poor.
Specification
| Item | Harmonica Tube Liquid Cold Plate |
| Size | 2.4*50mm |
| Thickness | 2.4mm,3mm |
| Cooling type | Water / glycol |
| Structure | Cooling tube / connectors |
| Cooling direction | Side cooling, bottom cooling , tab cooling |
| Liquid cold plate type | cold plate cooling plate for EV, stamped cold plate for ESS,harmonica shaped cooling tube plate , EV battery snake cooling tube ,aluminum roll bonded plate |
Advantage
• Highly adaptable to a broad range of geometries
• Tolerance compensation
• Low width of the design • Design flexibility
• Non electric conductive component
• Better thermal efficiency
*****Key point of design
1-Specify the battery type: cylindrical cells / square cells or prismatic cells/ soft battery or pouch cells
2-Module boundary dimensions
3-Heat dissipation requirement
4-Design and prototype budget
5-All heat exchanger choice such as the connectors,plastic quick connectors,battery cooling plate installation
Company Information
We, Trumony aluminium limited is committed to providing clean aluminium solution to the market. “Through the discovery and creation, to bring value to customers” is the company philosophy.”Trust in Harmony” is the company culture. Now, Through years of developing, now we are widely engaged in transportation, heat exchange,cable,packaging,construction,electronics,environmental protection and other files,apart from our current production, we are also actively developing new aluminium material and searching for customers solutions which is best suited for different industries to meet the precise needs of customers. Future we hope through our daily work, we could promote environmental protection, reduce social cost,promote employment and family harmony,thus our own value could also be realized.
FAQ :
1. What battery module cooling solution you can provide ?
A: We have 4 kinds of battery cooling type for your battery pack. Aluminum snake tube for cylindrical shaped of cells. Aluminum brazed cooled plate for prismatic cells ,aluminum micro channel plates for pouches and aluminum roll bonded panels .
2.What the alloy and temper of your water cooling plate ？
A:The aluminum alloy is 3000,6000 and temper is O-H112.
3.What the process technology to do the cold plate or coolant channles ?
A:Aluminum extrusion process , vacuum brazing process, roll bonded process and we also have CNC center.
4.Do you support customized prototype for battery pack module ?
A:Sure, we can produce the aluminum liquid cooling plate as your design. If just at the development stage, our existing cooled plate heat sinks are available for checking.
If you are interested in our aluminum cooling plate for battery energy storage system , pls send iqnuiry to us and we can arrange online meeting to discuss more details about the liquid cooling plates~~
