XLSY-6000
Trumony Energy

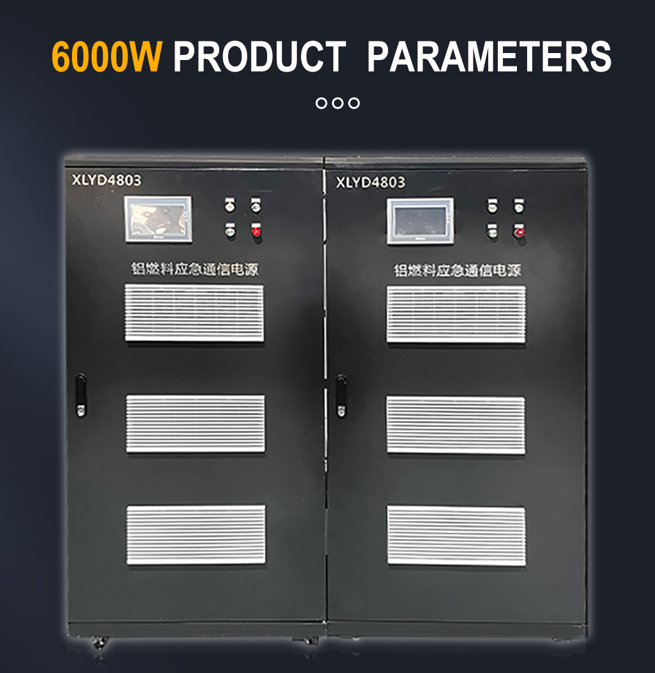

Aluminum Air Battery Fuel Cell Communication Emergency Power Station
1. Descriptions
Aluminum air battery fuel cell communication emergency power station is independently developed and produced by our company, and is mainly used as a backup power supply for communication base stations. It could support constant power output, the rated output power is 6000W, and a maximum power is 6600W.
Aluminum air battery is a new technology which used aluminum sheets as anode and graphene as cathode to generate electricity. It has a high power storage capacity and a long single operation time. This aluminum air battery device can achieve long-term power supply and meet the needs of base stations by quickly replacing aluminum plates. It is suitable for remote areas without electricity, such as islands, remote villages, communication base stations, and mountain tops.
2. Specifications
Parameter | Index |
Store electrical energy | 80kWh |
Rated voltage | 48V/AC220V |
Rated power | 6000W |
Voltage output range | 45.6V～53V |
Output text | Vp-p＜100mV |
Storage environment temperature range | -20～50℃ |
Storage life | More than 10 years |
Life span | 1000h |
Start Time | 1～5min |
Size | 1200*800*1600mm |
3. Applications
1.5G Communication base station
2.Commercial emergency power supply
3.Military power supply
4.Other areas without electricity
4. Advantages
1. High energy, high power storage, long working hours
The energy of the aluminum air battery is more than 500Wh/kg. It adopts a modular design. A single 3KW cabinet can theoretically store 50kwh, which can run smoothly for a long time.
2. Long-term storage, low maintenance cost
Aluminum fuel cells generate electricity by consuming aluminum plates, which can be stored for a long time without energy loss ,and they are maintenance-free for at least 5 years.
3. Weak noise, low infrared, safe and reliable
The noise generated by the equipment is less than 65dB, and the temperature is less than 55 degrees. It is rely on aluminum plates and water to generate electricity, So there is absolutely no risk of combustion and explosion.
4. Green and environmental protection, recycling
The reaction product of the equipment is aluminum hydroxide, which can be recycled or sintered into aluminum oxide, and the aluminum oxide can be used to make semiconductors, plastic filling materials, crucibles and other raw materials.
Aluminum Air Battery Fuel Cell Communication Emergency Power Station
1. Descriptions
Aluminum air battery fuel cell communication emergency power station is independently developed and produced by our company, and is mainly used as a backup power supply for communication base stations. It could support constant power output, the rated output power is 6000W, and a maximum power is 6600W.
Aluminum air battery is a new technology which used aluminum sheets as anode and graphene as cathode to generate electricity. It has a high power storage capacity and a long single operation time. This aluminum air battery device can achieve long-term power supply and meet the needs of base stations by quickly replacing aluminum plates. It is suitable for remote areas without electricity, such as islands, remote villages, communication base stations, and mountain tops.
2. Specifications
Parameter | Index |
Store electrical energy | 80kWh |
Rated voltage | 48V/AC220V |
Rated power | 6000W |
Voltage output range | 45.6V～53V |
Output text | Vp-p＜100mV |
Storage environment temperature range | -20～50℃ |
Storage life | More than 10 years |
Life span | 1000h |
Start Time | 1～5min |
Size | 1200*800*1600mm |
3. Applications
1.5G Communication base station
2.Commercial emergency power supply
3.Military power supply
4.Other areas without electricity
4. Advantages
1. High energy, high power storage, long working hours
The energy of the aluminum air battery is more than 500Wh/kg. It adopts a modular design. A single 3KW cabinet can theoretically store 50kwh, which can run smoothly for a long time.
2. Long-term storage, low maintenance cost
Aluminum fuel cells generate electricity by consuming aluminum plates, which can be stored for a long time without energy loss ,and they are maintenance-free for at least 5 years.
3. Weak noise, low infrared, safe and reliable
The noise generated by the equipment is less than 65dB, and the temperature is less than 55 degrees. It is rely on aluminum plates and water to generate electricity, So there is absolutely no risk of combustion and explosion.
4. Green and environmental protection, recycling
The reaction product of the equipment is aluminum hydroxide, which can be recycled or sintered into aluminum oxide, and the aluminum oxide can be used to make semiconductors, plastic filling materials, crucibles and other raw materials.
