YS-12
Trumony Technology

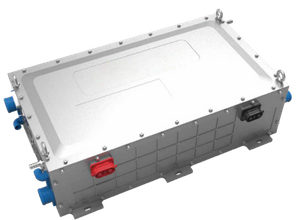

Hydrogen Fuel Cell Stack System
1. Descriptions
Compared with other traditional batteries, hydrogen fuel cell is a power generation device. The traditional battery only has the function of storing electrical energy. The hydrogen fuel cell is like a generator, which directly converts chemical energy into electrical energy, and in the process of providing energy, only produce water and heat.
2. Specifications
| Environmental requirements | |
Hydrogen inlet pressure | 0.1-1MPa |
Environment temperatur | 10~45℃ |
Operating humidit | 5%~95%RH |
Storage temperature | 20~45℃ |
Altitud | 3000m |
| Performance | |
Output voltag | 60-260VDC |
Output current | 125A-250A |
Rated output Powe | 5-90KW |
| Peak output Powe | 10-120KW |
| Product Appearance | |
Dimension | As per customer’s need |
Net weight | As per customer’s need |
| Fuel | |
Hydroge | H2>99.99% |
| Oxidan | Air |
| Coolant | Commercial Coolant |
| Protection class | IP67 |
| Shock and vibration | Compliance to SAE J2380 |
| Control interface | CAN BUS |
3. Applications
Hydrogen fuel cells have a wide range of applications, can be used for island power generation, on-board stacks, operating vehicles, trucks, etc..
4. Core technology

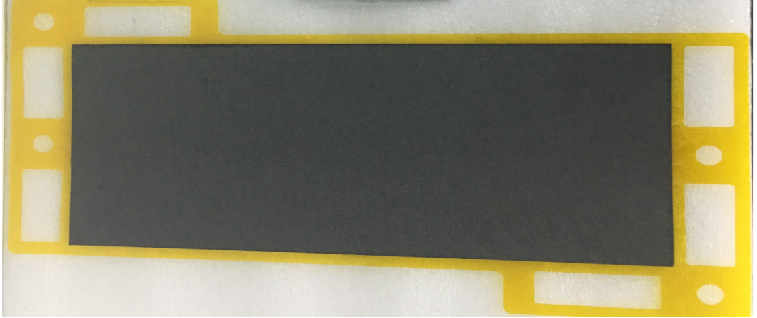

1. Membrane electrode
1. Material advantage: A series of catalyst materials with low platinum, high performance and long service life.
2. Application: Fuel cell vehicle and standby power supply.
3. Membrane electrode technology launching: Cooperate with Shaanxi coal and Chemical Technology Research Institute.
2. Sodium hydroxide cycle production
Hydrogen production system----NaH technology, this technology solves the pain point of hydrogen source. At the same time, this technology can achieve cyclic reaction and reduce the cost.
5. Advantages
1. High efficiency
The power generation efficiency of fuel cells can reach more than 50%, which is determined by the conversion properties of fuel cells, It’s directly convert chemical energy into electrical energy without the need for intermediate conversion of thermal energy and mechanical energy (generator).
2. Environmentally friendly
Due to the high energy conversion efficiency of the fuel cell, its carbon dioxide emissions are reduced by more than 40% compared to the heat engine process. The hydrogen fuel cell uses pure hydrogen as fuel, and its chemical reaction product is only water, which does not pollute the environment.
3. Simple structure, high reliability
Hydrogen fuel cell is different from battery, the power and capacity of fuel cells can be easily adjusted. It can provide a higher energy density, and can regenerate electricity by supplementing with hydrogen, without the need for a long time charging process for ordinary batteries.
4. No noise
The fuel cell runs quietly, and the noise is only about 55dB, which is equivalent to the level of people's normal conversation. This makes the fuel cell suitable for indoor installation, or in places where noise is restricted outdoors.
