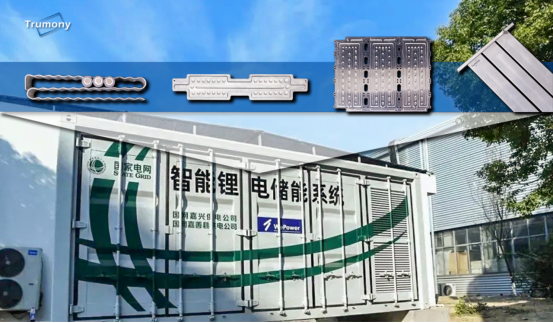

Customized High Performance green solution Heat Transfer ESS battery pack liquid cooling plate
Because the area of heat dissipation channels in traditional air-cooled products is omitted, the energy density of liquid-cooled energy storage systems has obvious advantages. Compared with the container solution of the same capacity, liquid-cooled energy storage products save more than 50% of the floor area.
Especially for large-scale energy storage power stations above 100 MWh in the future, the savings in land use will be more obvious, effectively helping users save land occupation and BOP costs. To increase the service life and reduce the cost of BOP.
The cooling methods of the energy storage system include air cooling, liquid cooling, phase change material cooling, and heat pipe cooling.
The customization design and manufacture capability of water cooling plate -Trumony
The liquid cooling solution has significant comprehensive advantages in ensuring the safety of the energy storage system and heat dissipation efficiency. The liquid cooling scheme uses cooling liquid such as water. The evenly distributed flow path on the liquid cooling plate arecontact with the battery cell to dissipate heat.
Trumony customizes the number of flow channels, flow rate, and flow rate based on actual applications. For example, the cold plate of the liquid-cooled plate-type liquid-cooled system needs to be jointly developed and designed with customers to confirm the selection and matching before manufacturing. It can be close to the heat source and cool efficiently; compared with the container air-cooled solution of the same capacity, it does not need to design air ducts and saves more than 50% of the area, and is more suitable for large-scale energy storage power stations above 100 MW in the future.
Specific services below:
For the heat exchange needs of energy storage battery pack from power generation side and consumption side, which include home energy storage system(HESS), industrial and commercial energy storage system, wind and solar energy storage integration, one-stop micro-grid energy storage and other application scenarios. Our project team will provide liquid cooling plate structure design, thermal interface material selection, pipeline layout, water cooler selection and other supporting services according to the actual requirements of customers, which can be space arrangement inside the ESS container, cell parameters, temperature difference, pressure drop, pressure resistance, etc. Brazed cold plates, machined cold plates, serpentine tubes, separated tray, integrated tray and so on can be the end-product forms.
Specification
Water cooling plates types | stamping vacuum liquid cooling plates | bending Wavy ribbon snake tube | Roll bonded cold plate | Parallel mircotube+ manifold | ||
heat dissipation methods | bottom cooling | side cooling | bottom cooling | bottom cooling or side cooling | ||
Battery pack | primatic battery pack(Lithium Cobalt Oxide (LCO) Lithium Manganese Dioxide (LMO) Lithium Iron Phosphate (LFP)) | cylindrical battery pack (4680,4695,18650,21700,34200,60130) | primatic battery pack(Lithium Cobalt Oxide (LCO) Lithium Manganese Dioxide (LMO) Lithium Iron Phosphate (LFP)) | primatic battery pack such as VDA | ||
Applications | industrial/commercial/ home energy storage system | industrial/commercial/ home energy storage system | industrial/commercial/ home energy storage system | industrial/commercial/ home energy storage system |
PS:the above heat dissipat ion methods can be combined
