TR-T22157
Trumony
202201157

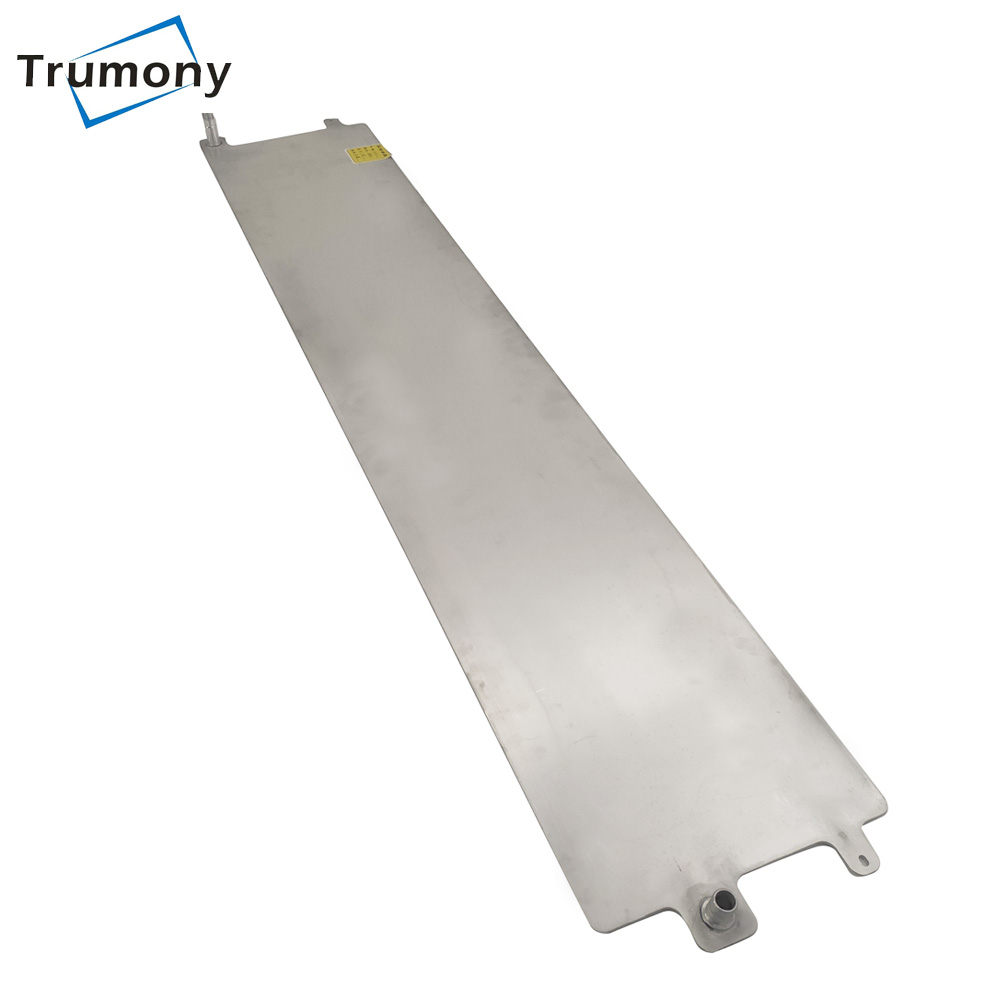

FSW Welding Cooling Tray CNC Machined Cold Plate for New Energy Vehicle
For the heat exchange needs of Electric Vichle battery pack, our project team will provide liquid cooling plate structure design, thermal inferface material selection, pipeline layout, water cooler selection and other supporting services according to the actual requirements of customers, which can be space arrangement inside the Electric Vehicle BMS, cell parameters, temperature difference, pressure drop, pressure resistance, etc.
The end-product types can be stamping liquid cold plate, machined cold plates, serpentine cooling ribbon, separated tray, intergrated tray and so on.
Detials:
Cooling plate | Machined cold plate |
Thickness | Per your request (We will suggest according to your cells) |
Width/Length | Customized. ((We will suggest according to your module) |
Battery | Prismatic cell, cylindrical cells 18650, 21700, 3270, 4680, 4695, punch pack and etc. |
Surface treatment | Insulation coating, with thermal interface material |
Applications |
|
Features of machined cold plate | 1. Fast for prototype making 2. High precision curve flow channel |
Our Advantages:
1) Flexible design solutions for all kinds of battery pack.
(According to your module provide customized cooling plate)
2) Design service, we have R&D department, can do design finalization, flow and heat simulation.
3) CNC centre to make customized inlet/outlet connector.
4) Thermal Interface Material, such as thermal silicone pad, Insulation coating etc.
Keywords: Water-cooled Tube for ESS, liquid cooling tube, snake tube for ESS, cylindrical tube, aluminum ribbon, snake radiator, serpentine cooled tube, battery heat exchanger, liquid cooling plate for electric 3 wheeler, serpentine pipe for ESS battery, solid-state welding
FAQ
Q: What kind of battery cold plate can you provide?
A:
1) Stamped cooling plate for prismatic cells / battery pack.
2) Serpentine tube for cylindrical cells, such as 21700, 18650, 3270, 4680 big cell.
3) Extruded tube with manifold for soft battery pack.
4) Roll bond cooling plate for heating / cooling.
Q: What method of processing technology?
A: We have brazing line, stamping line, extrusion line, and roll boned process line. Also CNC centre is available.
Q: If we don't have design, can you assist in design?
A: Yes, we can! We have a strong and experienced design team. Flow path design, thermal simulation, mechanical simulation and design optimation are support. Kindly share with us your detail project, service8@trumony.com, we'd love to do DFM for you.
Q: How fast you can make prototype?
A: About 3~5wks. The precise lead time will depends on your design and producing process.
