Liquid cooling system for a battery pack.
The performance of EVs is greatly dependent on the battery pack. Temperatures of the cells in a battery pack need to be maintained within its optimum operating temperature range in order to achieve maximum performance, safety and reliability under various operating conditions. A thermal management system is needed in order to enhance the performance and to extend the life cycle of the battery pack.Trumony as the electric vehicle heat exchanger manufacturer, we have full solution for the battery pack for example the cooling ribbon for cylindrical cell cooling. aluminum cold plate for lithium-ion battery pack with liquid cooling , microchannel cooling tube for pouch cells .
Specification
Item : liquid cooling system for thermal management system
Size : As your design
Thickness : 8mm
Cooling type : Liquid cooling
Structure : Stamped cold plate /aluminum down plate / inlet/outlet/ plastic quick connectors
Application : prismatic battery or soft package cells
Plate type : cold plate cooling plate for EV, stamped cold plate for ESS,harmonica shaped cooling tube plate , EV battery snake cooling tube ,aluminum roll bonded plate .
Advantage
Simulation aided flow path design with realization of pressure drop, flow rate and heat distribution
Experience with integration of manifold, tubing and thermal interface material
Dedicated design for battery or electronics cooling
Design and manufacturing experience of large size plate
Liquid cooling plate for commercial application :
1-Road passenger transport cooling solution
2-Urban delivery solution: light trucks battery pack cooling plate, mini buses cells cooling panel , and minivans liquid cooling plate
3-Heavy-duty transport battery cold solution:
4-Urban street cleaning vechile battery pack cooling : covering a variety of vehicle types including electric washing vehicles, electric washing and sweeping vehicles, electric garbage trucks and other vehicles
FAQ :
1. What battery module cooling solution you can provide ?
A: We have 4 kinds of battery cooling type for your battery pack. Aluminum snake tube for cylindrical shaped of cells. Aluminum brazed cooled plate for prismatic cells ,aluminum micro channel plates for pouches and aluminum roll bonded panels .
2.What the alloy and temper of your water cooling plate ？
A:The aluminum alloy is 3000,6000 and temper is O-H112.
3.What the process technology to do the cold plate or coolant channles ?
A:Aluminum extrusion process , vacuum brazing process, roll bonded process and we also have CNC center.
4.Do you support customized prototype for battery pack module ?
A:Sure, we can produce the aluminum liquid cooling plate as your design. If just at the development stage, our existing cooled plate heat sinks are available for checking.
If you are interested in our aluminum cooling plate for electric battery battery pack , pls send iqnuiry to us and we can arrange online meeting to discuss more details~~

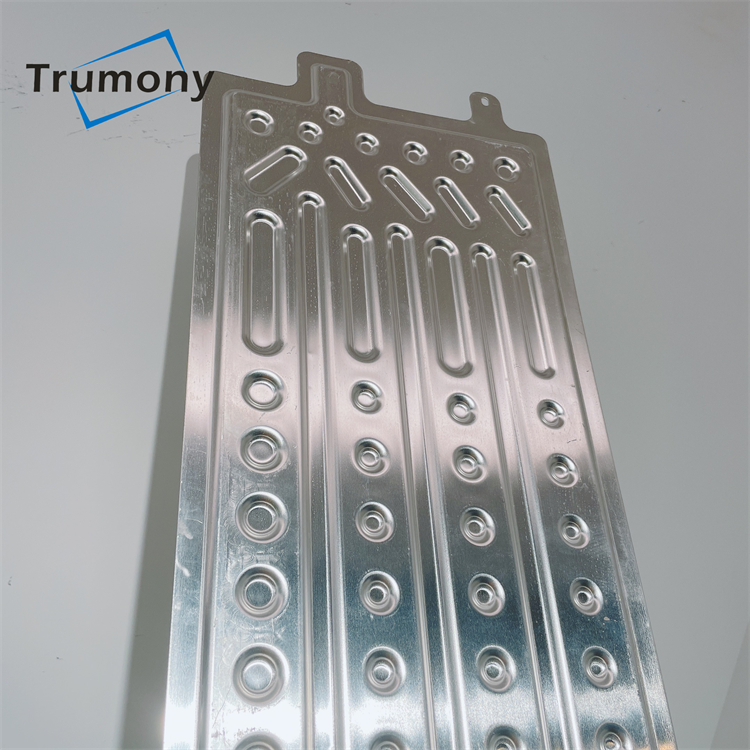

Stamping cold plate
Snake tube for 18650 battery module
