XLSY-1000
Trumony Energy

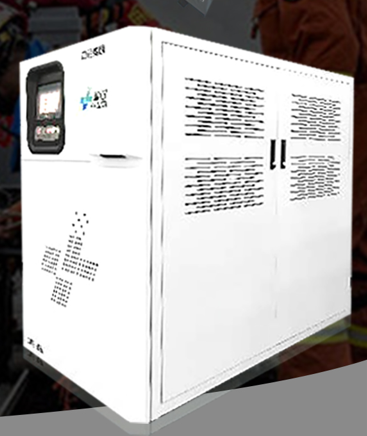

1000W Emergency Backup Fuel Cell Power Supply Metal Air Battery
Descriptions
1000W portable emergency backup power supply converts chemical energy into electrical energy through the chemical reaction of aluminum and air in the alkaline water medium. It is a power generation device. At the same time, aluminum plate is used as a carrier of energy. The chemical reaction between the graphene is mild and safe. The volatge of the al-air system could be customized as your requirement: DC or AC output.
Aluminum air battery system features the characteristics of long shelf time, high energy density.As a power generating device, it is very proper to use in the following fields as a backup power: like industrial, mining, hospital, hotel etc.
Specifications
1000W/24KWH
Model and specification | XLSY-1000 |
Rated power | 1000 W |
Rated power | 24 KWh |
Output voltage | DC12V/24V&AC220V |
Working temperature | 0℃～40℃ |
Storage temperature | -40℃～60℃ |
Electrolyte single power supply time | 8 h |
Weight | <150 kg |
Size | 810*600*920mm
|
Storage life | More than 10 years |
1000W/72KWH
Model and specification | XLSY-1000 |
Rated power | 1000 W |
Rated power | 72 KWh |
Output voltage | DC12/24/48,AC110V/220V |
Working temperature | 0℃～40℃ |
Storage temperature | -40℃～60℃ |
Single power supply time | 72 h+ |
Weight | <300 kg |
Size | 1405*840*1180 mm |
Applications
1.Home backup power
2.Warehouse backup power
3.Emergency rescue
4.Emergency power generator
Advantages
1.Safe transportation
Aluminum air battery could be air-freighted, in stark contrast with the lithium ion battery which are prone to thermal runaway.
2.High power storage
Aluminum plate is a solid fuel with high specific energy, the energy density of aluminum air battery system could be up to 300wh/kg in the practical application.
3.Good environmental adaptability
Aluminum air battery have a stable performance under the range of environment temperature 0℃-40℃. Al-air system is less affected by environmental conditions.
4.Easy to operate

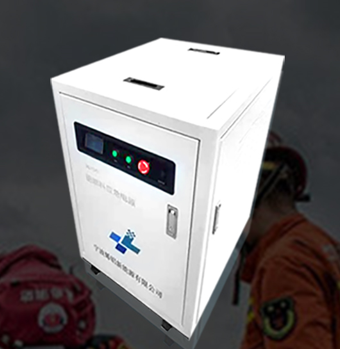

Aluminum air battery system has been designed several buttons on the operating panel they are respectively: start, stop, reset. The system could work by only pressing down these buttons. In addition, the display screen is multilingual, you can operate and check the system more efficiently.
