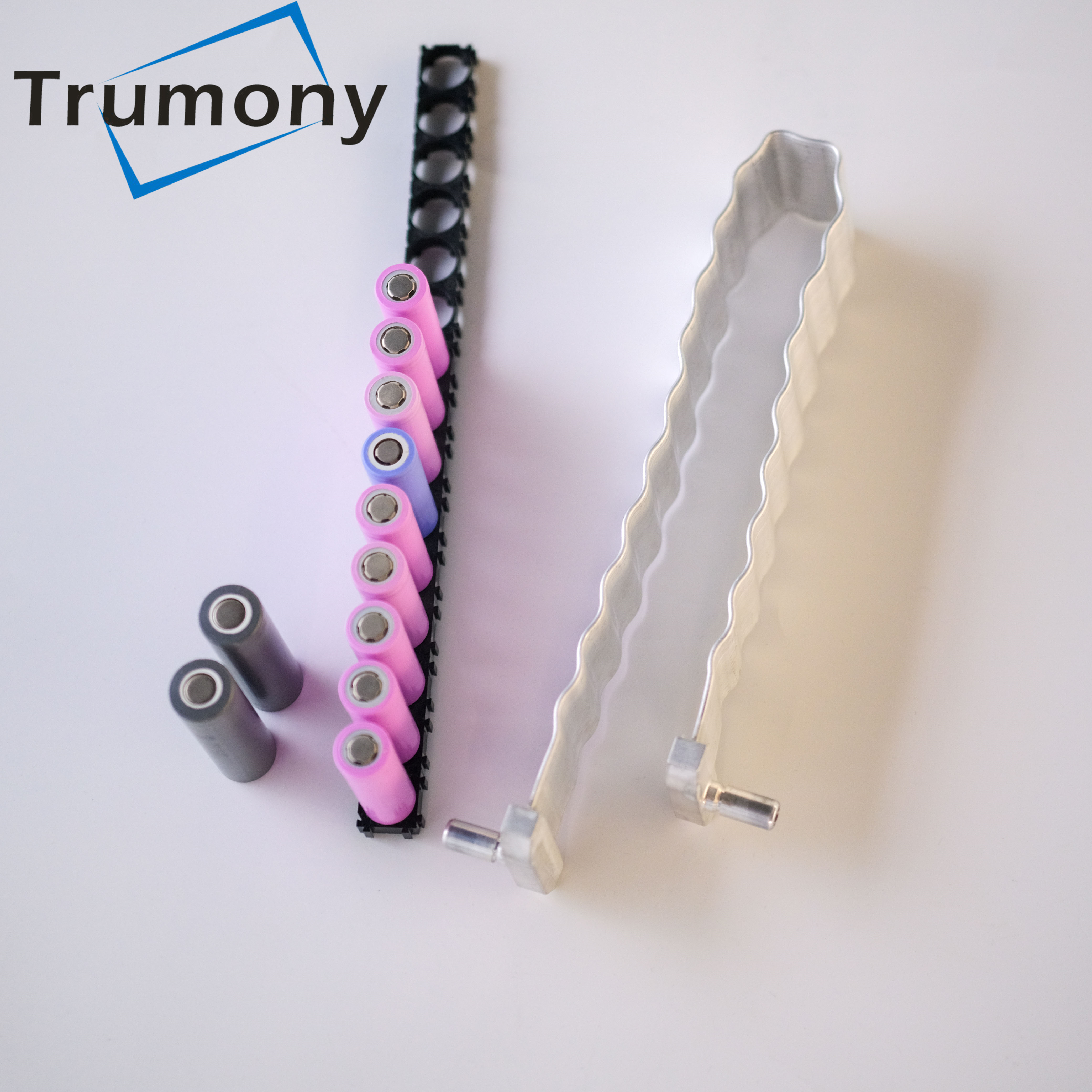

21700 Lithium Battery Cooling Tube Side Heat Dissipation Weight Limited Trucks Use
Improving the thermal performance of the lithium battery can start from the two aspects of reducing the heat generated by the battery itself and improving the heat dissipation efficiency.
From one hand, most of the heat of the battery comes from the heat generated by the electrode during the charging and discharge process, so it can reduce the production of heat to the greatest extent by optimizing the design of the electrode. From another, good thermal management system helps alleviate the rapid heating up in the load process and improve stability.
For large battery packs in EV, TMS is very important. Also as a key component in thermal management system, LIQUID COOLING PLATE can heat dissipation efficiently via side cooling or bottom cooling. And there are four typical type of water cooling plates, they are punching cooling plate, stamping snake tube, micro-channel tube with manifold, roll bonding cooling plate.
Our team will provide facilities, simulation, and sampled one -stop services based on the layout and specific heat dissipation needs of the battery pack, such as temperature differences, pressure drops, pressure resistance, internal runways and external interfaces.
Specification
Item | Liquid cooling plate for electric weight limited trucks |
Size | Customized as your drawing |
Thickness(after stamping) | 5-8mm |
Cooling type | Liquid cooling |
Liquid cold plate type | stamping cold plate for ESS, harmonica shaped cooling tube plate, snake tube, aluminum roll bonded plate |
Q&A
Can you realize the proposed design concepts?
Yes. Trumony is able to provide drafting service: 2D drawings and 3D digital models can be output.
Can you turn the 3D model to the physical products?
Yes. Trumony is capable to access the production feasibility of the of the models. In the early stage of design, our engineers will evaluate the structure of the model and optimize the easily damaged parts in the production.
Can you carry out performance test on product?
Yes. Trumony is able to simulate product model working in the environment required by the customer and obtain the key performance parameters through finite element solution.
Then trial costs could be reduced by improving product design efficiency.
