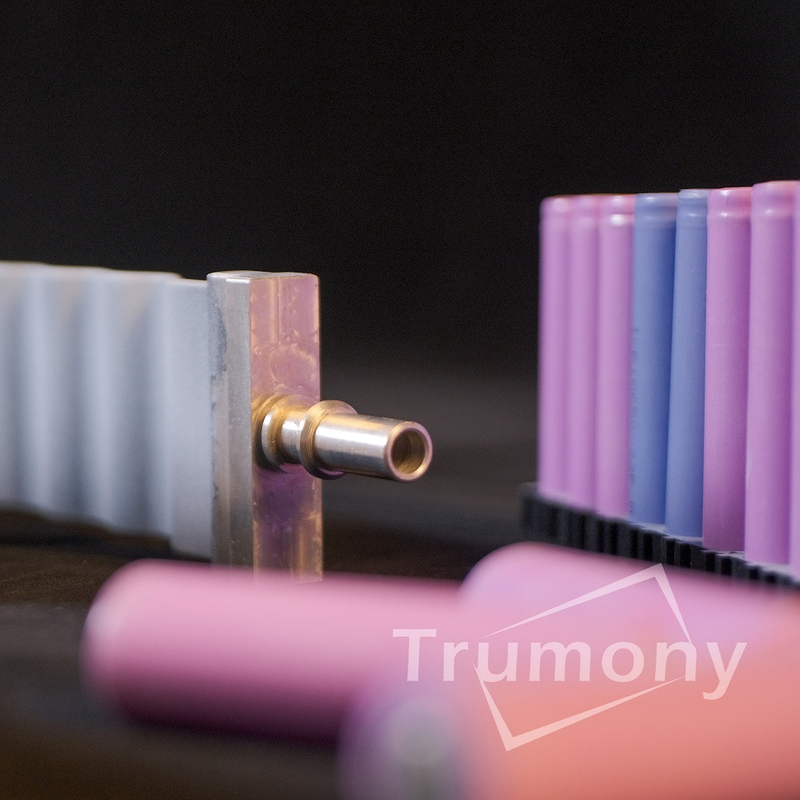

Design for Manufacturability 32700 Battery Water Cooling Ribbon for Power Storage
The advantages of serpentine elbow:
a) Reduce flow paths, strengthen flow, meet stronger heat dissipation requirements;
b) More suitable for product placement;
c) Heat capacity increases 10%.
Detials:
| Cooling plate | Battery Water Cooling Ribbon |
| Thickness | Per your request (We will suggest according to your cells) |
| Width/Length | Customized. ((We will suggest according to your module) |
| Battery | Prismatic cell, cylindrical cells 18650, 21700, 3270, 4680, 4695, punch pack and etc. |
| Surface treatment | Insulation coating, with thermal interface material |
| Applications |
|
Our Advantages:
1) Flexible design solutions for all kinds of battery pack.
(According to your module provide customized cooling plate)
2) Design service, we have R&D department, can do design finalization, flow and heat simulation.
3) CNC centre to make customized inlet/outlet connector.
4) Thermal Interface Material, such as thermal silicone pad, Insulation coating etc.
Keywords: Water-cooled Tube for ESS, liquid cooling tube, snake tube for ESS, cylindrical tube, aluminum ribbon, snake radiator, serpentine cooled tube, battery heat exchanger, liquid cooling plate for electric 3 wheeler.
FAQ
Q: What kind of battery cold plate can you provide?
A:
1) Stamped cooling plate for prismatic cells / battery pack.
2) Serpentine tube for cylindrical cells, such as 21700, 18650, 3270, 4680 big cell.
3) Extruded tube with manifold for soft battery pack.
4) Roll bond cooling plate for heating / cooling.
Q: What method of processing technology?
A: We have brazing line, stamping line, extrusion line, and roll boned process line. Also CNC centre is available.
Q: If we don't have design, can you assist in design?
A: Yes, we can! We have a strong and experienced design team. Flow path design, thermal simulation, mechanical simulation and design optimation are support. Kindly share with us your detail project, service8@trumony.com, we'd love to do DFM for you.
Q: How fast you can make prototype?
A: About 3~5wks. The precise lead time will depends on your design and producing process.
