TR-T22069
Trumony
TR-T22069
Trumony serves and fulfill clents' requirements with our mold design, mold manufacturing, extrusion production, machining and so on. We can provide cover 1, 3, 4, 5, 6, 7 and 8 series aluminum alloy.
Specifications:
Temper: HO/H14/H16/H18/H24
Size: Fin: 0.07/0.08 * (16-28)mm
Tube: (0.27-0.32)*(35-75)mm
Plate: (0.6-1.5)*(1070/1000/659)*(500-2500)mm
Cladding rate: 4~18% (each side)
Core material:
| Alloy No. | Si | Fe | Cu | Mn | Mg | Zn | Zr | Ti |
| 3003 | 0.6 | 0.7 | 0.05-0.2 | 1.0-1.5 | - | 0.1 | - | - |
| 3003+1%Zn | 0.6 | 0.7 | 0.05-0.2 | 1.0-1.5 | - | 0.5-1.5 | - | - |
| 3003+1.5%Zn | 0.6 | 0.7 | 0.05-0.2 | 1.0-1.5 | - | 1.0-2.0 | - | - |
| 3003+1.5%Zn+Zr | 0.65~1.0 | 0.4 | 0.05 | 1.4-1.8 | 0.03 | 1.3-1.7 | 0.05-0.2 | - |
| 3003+0.5%Cu | 0.6 | 0.7 | 0.3-0.7 | 1.0-1.5 | - | 0.1 | - | - |
| 3005 | 0.6 | 0.7 | 0.2-0.4 | 1.0-1.5 | - | 0.25 | - | - |
Clad Alloy
| Alloy Grade | Si | Fe | Cu | Mn | Mg | Zn | Zr | Ti |
| 4343 | 6.8-8.2 | 0.8 | 0.25 | 0.1 | - | 0.2 | - | - |
| 4343+1%Zn | 6.8-8.2 | 0.8 | 0.25 | 0.1 | - | 0.5-1.5 | - | - |
| 4045 | 9.0-11.0 | 0.8 | 0.3 | 0.05 | 0.05 | 0.1 | - | 0.2 |
| 4045+1%Zn | 9.0-11.0 | 0.8 | 0.3 | 0.05 | 0.05 | 0.5-1.5 | - | 0.2 |
| 4004 | 9.0-11.0 | 0.8 | 0.25 | 0.1 | 1.0-2.0 | 0.2 | - | - |
| 7072 | 0.1 | 0.1 | 0.1 | 0.8-1.3 | - | - | ||
| 5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.5-1.1 | 0.5-1.0 | - | - |

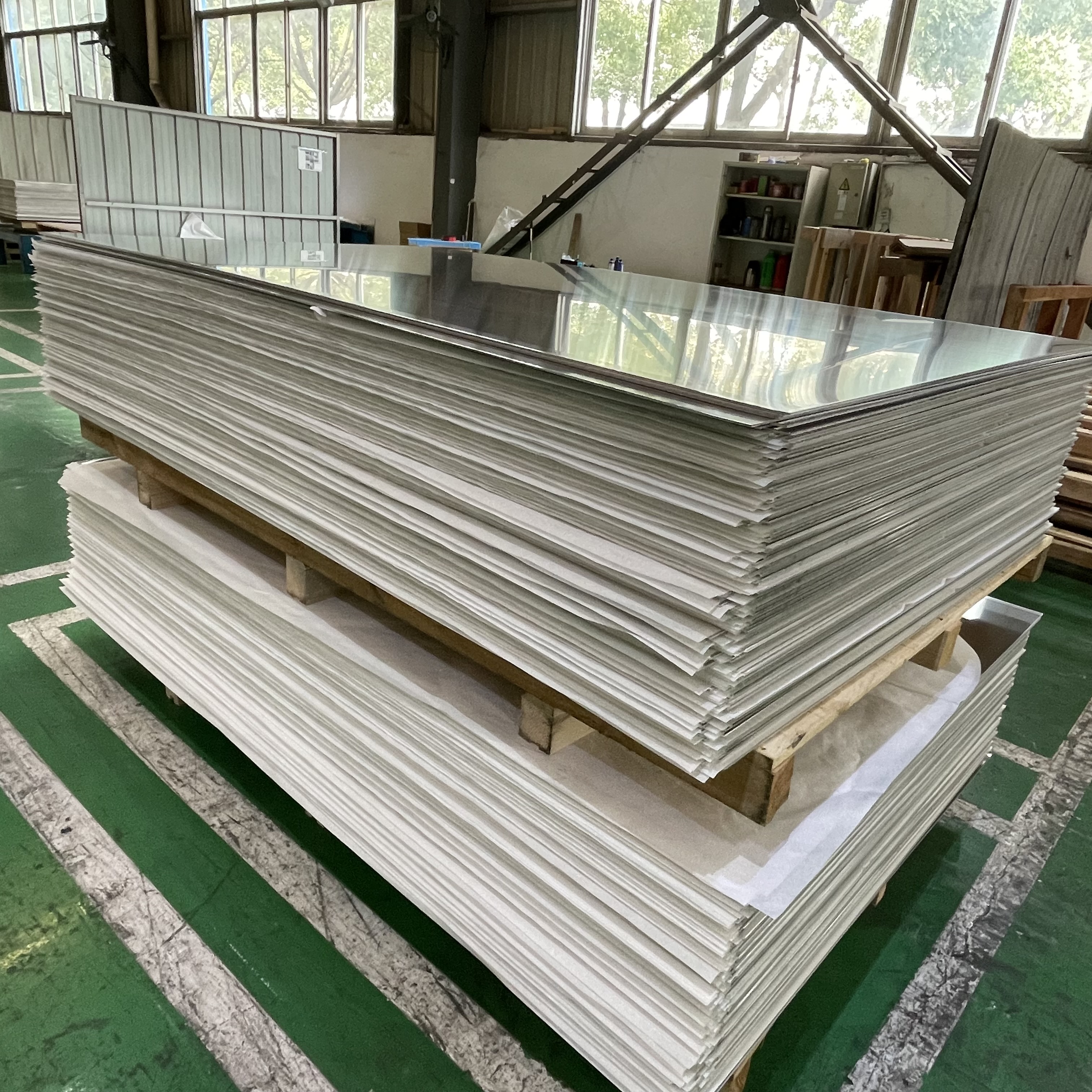

Applications of aluminum coil/sheet/strip:
1) Condensers
2) Evaporators
3) Oil coolers
4) Heater cores
5) Refrigerator
6) Air conditioner
5)Electrical Vehicle battery cooling
