1.Product introduction

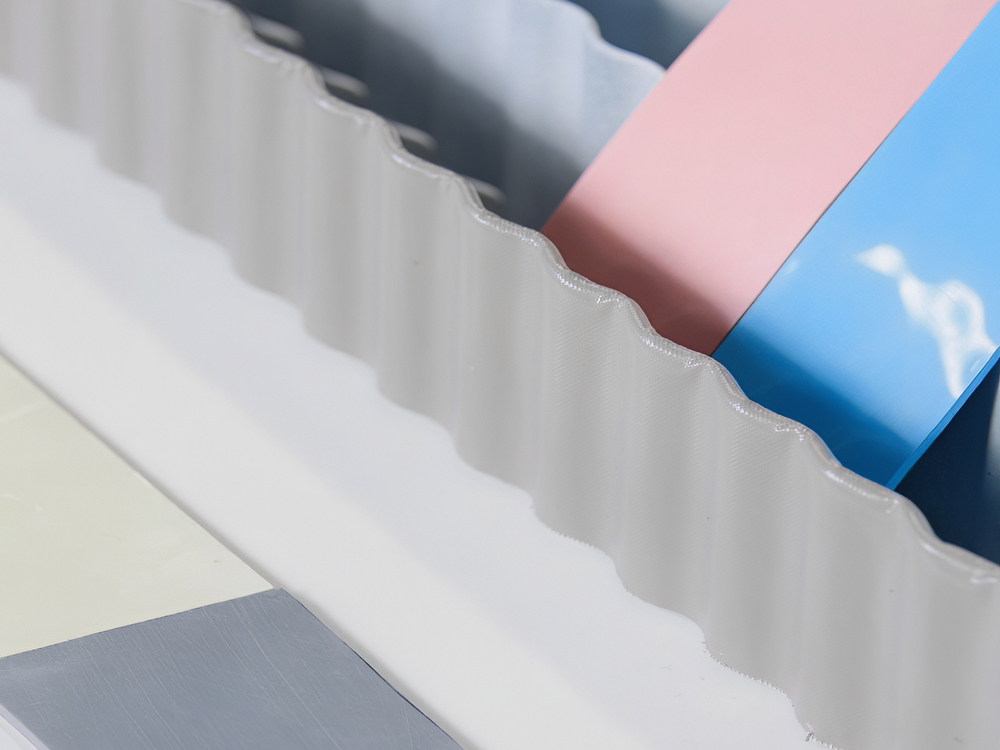

The thermal pad is generally located between the liquid cooling plate and the cell pole, which can effectively exclude air and achieve good filling and thermal conductivity effects. In addition, it also has good insulation and voltage resistance characteristics and temperature stability, safe and reliable use. thermal conductive silicone pads are also widely used in communication equipment, network terminals, data transmission, LED, automotive electronics, consumer electronics, medical devices, military, aerospace and other fields.
2.Technological Parameters:
Thermal Pads Series | ||||||
| Item No. | Thermal Conductivity (W/m*K) | Hardness (Shore 00) | Density (g/cc) | Voltage Resistance (KV/MM) | Volume Resistivity (Ω*cm) | Flame Rating (UL-94) |
| 301-0150 | 1.5 | 5~80 | 1.8 | 10 | 10^12 | V0 |
| 301-0200 | 2 | 5~80 | 2 | 10 | 10^12 | V0 |
| 301-0300 | 3 | 15~80 | 3.0 | 8 | 10^12 | V0 |
| 301-0400 | 4 | 15~80 | 3.3 | 8 | 10^12 | V0 |
| 301-0600 | 6 | 20~80 | 3.5 | 8 | 10^12 | V0 |
| 301-0800 | 8 | 30~80 | 3.6 | 8 | 10^12 | V0 |
| 301-1000 | 10 | 30~80 | 3.3 | 6 | 10^12 | V0 |
| 301-1200 | 12 | 30~80 | 3.2 | 6 | 10^12 | V0 |
3.FAQ
A) How could I get a sample?
Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.
B) Sample time?
Within 30 days.
C) Whether you could make our brand on your products? Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
D) Whether you could make your products by our color? Yes, The color of products can be customized if you can meet our MOQ.
E) How to guarantee the quality of your products?
1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
F) : Do you accept R & D assignments?
Yes, as long as we can do products, we can according to Your Design Requirements of individual R & D.
