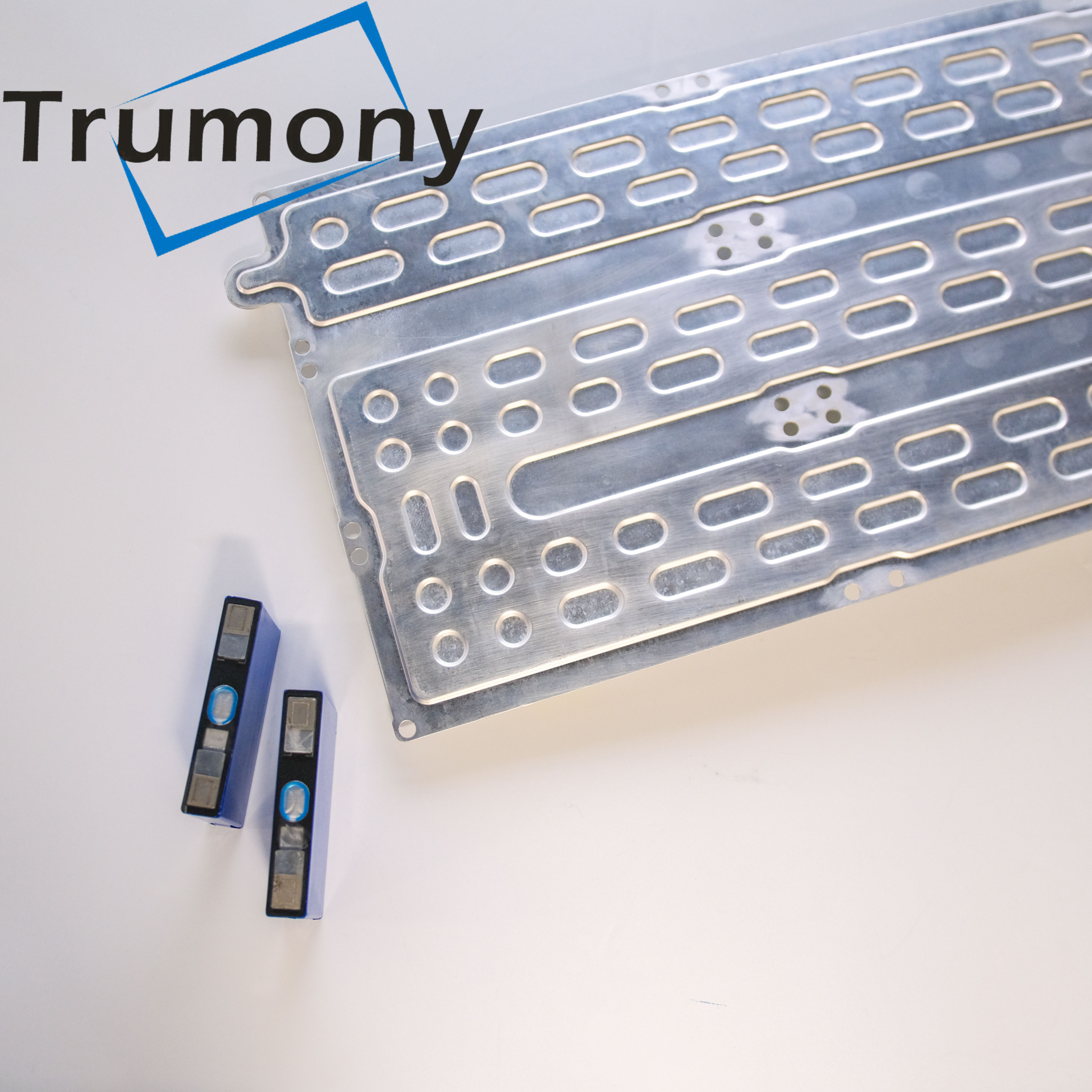

VDA battery module water cooling plate electric automobile for tricycle truck use
When an electric vehicle is in use, the rapid discharge of the battery will generate a lot of heat. The normal operation of the battery requires an effective cooling system to maintain the temperature within 20-50 degree to function properly between extreme temperatures, and at the same time keeps the temperature difference in the battery packs not exceed 5 degree. Larger internal temperature differences can cause each cell to charge and discharge at different rates, reducing the performance of the battery pack.
Thermal runaway can result if the cells overheat or the temperature distribution in the battery pack is uneven.
Liquid coolants have higher thermal conductivity and heat capacity than air, so they perform very efficiently and offer advantages such as compactness and ease of deployment. For prismatic and cylindrical battery packs, there are two types of water cooling tube, one is wavy shape serpentine tube, another is bottom cooling stamping water cooling tube. There are flow channels inside to allow coolant running for heat transfer.
For passenger, commercial, and logistics vehicles, heavy equipment and other power battery application, our project team will provide exploration, design, simulation, optimization, molding, proofing, delivering, system integration and after-sale services according to the actual requirements of customers, which can be temperature difference, pressure drop, pressure resistance, internal flow channels and external connectors, etc.
Specification
| Item | Battery cooling thermal management components liquid cooling plate |
| Thickness | 1.6-3.5mm |
Max.Width | 700mm |
| Max.Length | 2000mm |
Cooling Type | Liquid cooling |
Application | Electric vehicle such as tricycle,truck/lorry/van, heavy goods vehicle |
Our services
Design capabilities: For different battery packs and its non-uniform battery configuration
Production feasibility assessment: assess and improve design with production ability
Simulation: heat dissipation requirement evaluation
Sample delivery: CNC center for tooling
Q&A
Can you realize the proposed design concepts?
Yes. Trumony is able to provide drafting service: 2D drawings and 3D digital models can be output.
Can you turn the 3D model to the physical products?
Yes. Trumony is capable to access the production feasibility of the of the models. In the early stage of design, our engineers will evaluate the structure of the model and optimize the easily damaged parts in the production.
Can you carry out performance test on product?
Yes. Trumony is able to simulate product model working in the environment required by the customer and obtain the key performance parameters through finite element solution.
