TR-CY-T173
Trumony
TRCYT173

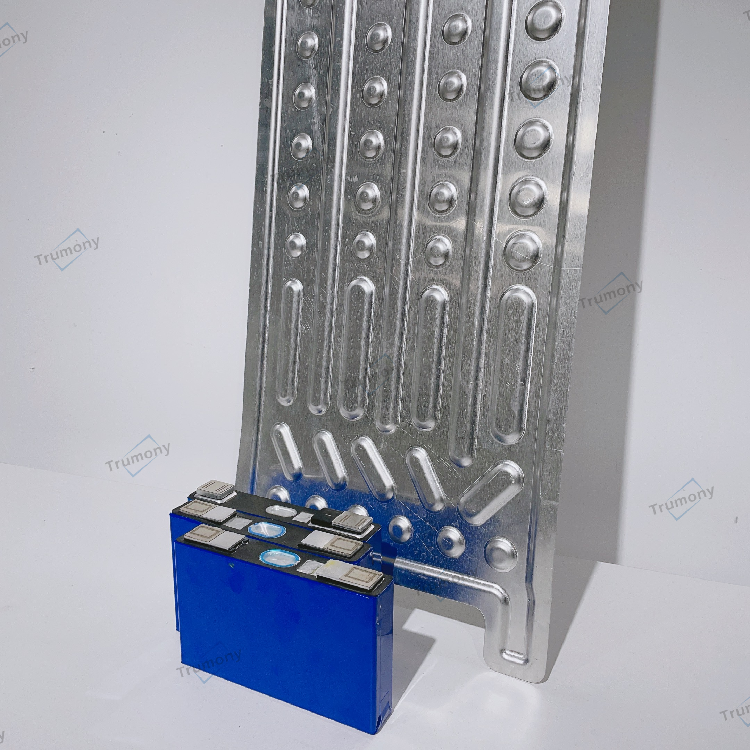

Vacuum Brazed Liquid Cooled Plates for Electric Utility Truck Battery Pack Bottom Cooling
A cold plate is responsible for taking the heat from the batteries and transferring it to a single-phase liquid coolant, circulating through internal channels of the plate and subsequently rejecting it downstream to a radiator. There are several thermal/mechanical advantages of a cold plate solution.In order to meet the cooling direction requirement for various battery types,we post main 4 kinds liquid cooling solution for consideration for example the liquid cold plates for lithium batteries, cooling ribbon for cylindrical cells, aluminum micro channel tube for tab cooling, and roll bonded cold plates for pouch cells.
Specification
| Item | Liquid cooling solution for battery management system |
| Thickness | 5-8mm |
| Max.Width | 1500mm |
| Max.Length | 2200mm |
| Cooling Type | Liquid cooling (coolant : water/glycol) |
| Application | electric passenger cars , energy storage system, commercial cars , heavy duty trucks,electric forklift, electric marine, electric aircraft |
New Energy Automotive Liquid Cold Plate For Lithium Ion Battery Pack:
 |  | | |
Harmonica cooling plate | Sanke cooling ribbon | Roll Bonded cooling plate | Brazing cold plate |
Why choose us as your battery pack cooling solution manufacturer ?
1-One of the earliest manufacturers of thermal management products for power batteries in China;
2-Comprehensive automotive thermal management system R&D and service capabilities;
3-Trumony has carried out in-depth cooperation with a number of automobile manufacturers and battery pack factories;
4-Has a complete production line and experimental testing capabilities.
FAQ :
1. What battery module cooling solution you can provide ?
A: We have 4 kinds of battery cooling type for your battery pack. Aluminum snake tube for cylindrical shaped of cells. Aluminum brazed cooled plate for prismatic cells ,aluminum micro channel plates for pouches and aluminum roll bonded panels .
2.What the alloy and temper of your water cooling plate ？
A:The aluminum alloy is 3000,6000 and temper is O-H112.
3.What the process technology to do the cold plate or coolant channles ?
A:Aluminum extrusion process , vacuum brazing process, roll bonded process and we also have CNC center.
4.Do you support customized prototype for battery pack module ?
A:Sure, we can produce the aluminum liquid cooling plate as your design. If just at the development stage, our existing cooled plate heat sinks are available for checking.
If you are interested in our aluminum cooling plate for electric battery battery pack , pls send iqnuiry to us and we can arrange online meeting to discuss more details~~
