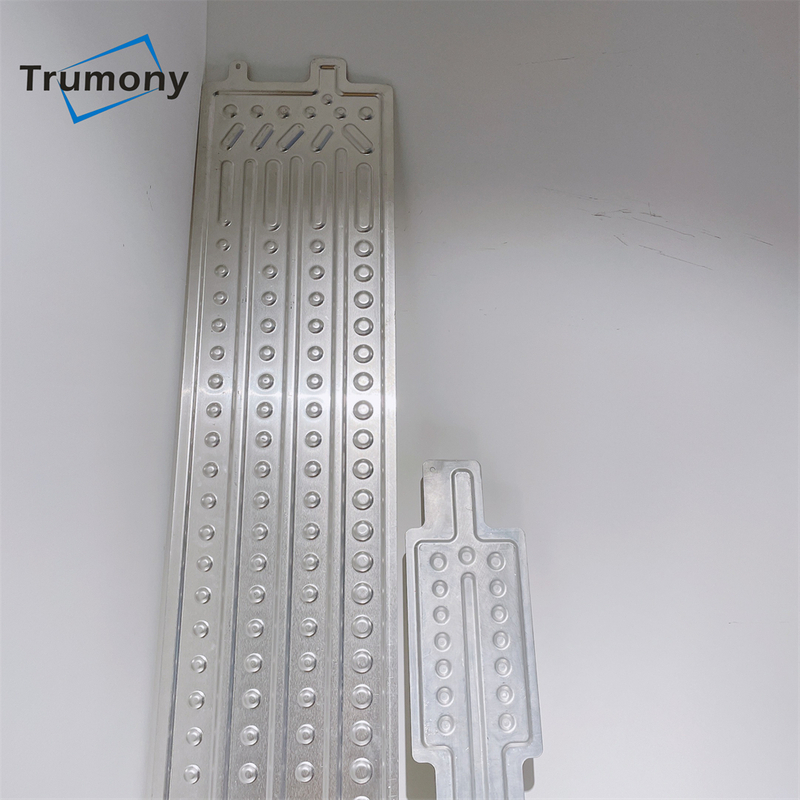

Stamped Brazed Tray for Zero Emissions Automobile Battery Cooling Plate

Trumony designs, makes and distribute cooling plate for battery pack, which carrying prismatic cell, cylindrical cell and soft battery pack.
Our cooling plate widely use in Electric Vehicle/ New Energy Automobile/ Heavy duty/ Cars/ Marine battery cooling system.
Availability:
Quantity:
  • TR-T22151
  • Trumony
  • 202201151

Stamped Brazed Tray for Zero Emissions Automobile Battery Cooling Plate

Liquid cooling system is more and more prevalent because of its compact structure and higer thermal performance. It's widely used in these application areas: new energy electricl vehicle, energy storage system, IGBT cooling, energy conservation and pollution reduction.

The battery cooling system of new energy automobile mainly includes batteries, battery coolers for cooling batteries, water cooling plates and other important components, and is an important component of the thermal management system of new energy vehicles.




Detials:

Type of          cooling plate
  1. Brazing cold plate  2. Snake tube for cylindrical cells                          3. Microchannel tube with manifold

Thickness  Per your request  (We will suggest according to your cells)
Width/Length  Customized.  ((We will suggest according to your module)
Battery  Prismatic cell, cylindrical cells 18650, 21700, 3270, 4680, 4695, punch pack and etc.
Surface treatment Insulation coating, with thermal interface material
Applications



liquid cooling plate


According to various applications and requirements of thermal management, we can provide a range of battery cooling solutions.

 1) Stamping type cooling plate for prismatic cells / battery pack.
 2) Extrusion snake tube for cylindrical cells, such as 21700, 18650, 3270, 4680 big cell.

 3) Extruded tube with manifold for soft battery pack.

 4) Roll bond cooling plate for heating / cooling.

Our Advantages:
  1) Flexible design solutions for all kinds of battery pack.

      (According to your module provide customized cooling plate)

  2) Design service, we have R&D department, can do design finalization, flow and heat simulation.
  3) CNC centre to make customized inlet/outlet connector.
  4) Thermal Interface Material, such as thermal silicone pad, Insulation coating etc.


Keywords: Water-cooled Tube for ESS, liquid cooling tube, snake tube for ESS, cylindrical tube, aluminum ribbon, snake radiator, serpentine cooled tube, battery heat exchanger, liquid cooling plate for electric 3 wheeler.



FAQ

Q: How long does it take for samples and mass production?

A: Usually it will take 15-20 days for new moulds and free samples (within 5kg), after confirmation, 25-30 days for mass production.

Q: OEM/ODM available?

A: Yes,we can!

Q: Can you assist in design?

A: Yes, we can! We have a strong and experienced design team.

Q: Could you provide sample?

A: Yes, We are honored to offer you samples for quality check.

Q: Is sample order accepted?

A: Yes,we accept sample order and we can provide design service!



About us

Founded in 2006, is a leading supplier of critcal heat transfer material for automobile and industrial cooling sectors. Using advanced equipment and technology, Trumony Aluminum Ltd provides products cover 1,3,4,5,6,7 and 8 series aluminum alloy, brazing aluminum fins, steel/aluminum cladded tubes, high frequency welded tubes and headers and so on many varietes, many specificatons of the product series.
