TRUMONY 6w/m*k Adhesive Heat Pad Thermal Interface Material Thermal Silicone Pad for Cooling Heatsink

Strength layer:PI/fiber glass/laminated fiber glass
Thermal conductivity:1.5~12 W/m*K
Flame rating:V0(UL94-V0)
Customizable size, thickness, color, any questions, welcome to communicate
  • Trumony

1.Product introduction

Conductive Silicone Pad is a kind of thermal conductive medium material synthesized by special process with silica gel as the base material and various auxiliary materials such as metal oxide.

Conductive Silicone Pad  has a certain degree of flexibility, excellent insulation, compressibility, natural viscosity of the surface, specially for the use of gap heat transfer design scheme production, can fill the gap, complete the heat transfer between the heating part and the heat dissipation part, but also play the role of insulation, shock absorption, can meet the equipment miniaturization and ultra-thin design requirements, is very technological and usability.

The thermal pad is generally located between the liquid cooling plate and the cell pole,are widely used in 5G/server/new energy vehicle/3C/LCD TV/home energy storage and other products involving heat dissipation components

2.Advantages of thermal pads:

2.1The thermal conductivity is adjustable and the thermal conductivity stability is better

2.2The process difference in the structure is closed, and the process difference requirements of the radiator and the cooling structure are reduced.

2.3It is easy to install, test and reuse.

2.4The material is soft, good compression performance, good thermal conductivity and insulation performance, the thickness of the adjustable range is relatively large, suitable for filling the cavity, both sides have natural viscosity, operability and maintainability.

thermal pad (1) (1)

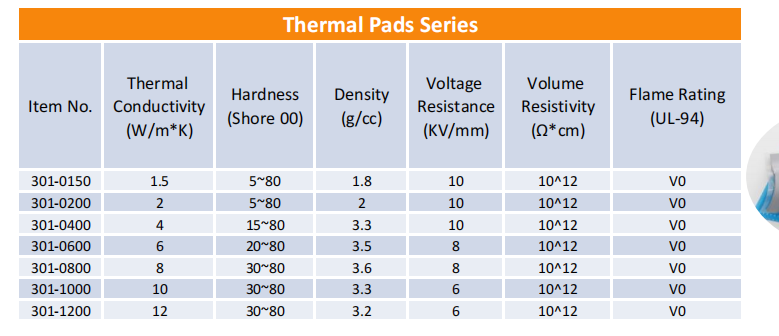

3.Technological Parameters:

thermal pad data sheet


A)    How could I get a sample?

Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.

B)     Sample time?

Within 30 days.

C) Whether you could make our brand on your products? Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.

D) Whether you could make your products by our color?

Yes, The color of products can be customized if you can meet our MOQ.

E) How to guarantee the quality of your products?

1) Strict detection during production.

2) Strict sampling inspection on products before shipment and intact product packaging ensured.

F) : Do you accept R & D assignments?

Yes, as long as we can do products, we can according to Your Design Requirements of individual R & D.
