1.product introduction
Thermal conductive silicone grease is a kind of high thermal conductivity insulating silicone material, Thermal conductive silicone grease refers to organic silicone as the main raw material, is currently the most widely used kind of thermal conductivity medium, the material is paste liquid, it is based on silicone oil as the raw material, and add thickening agent and other fillers, after heating and depressurisation, grinding and other processes to form a kind of ester, with a certain degree of viscosity, there is no obvious sense of particles. Thermal conductive silicone grease can effectively fill all kinds of seams. The colour is different depending on the added heat-conducting material. Its main raw material is organic silicone

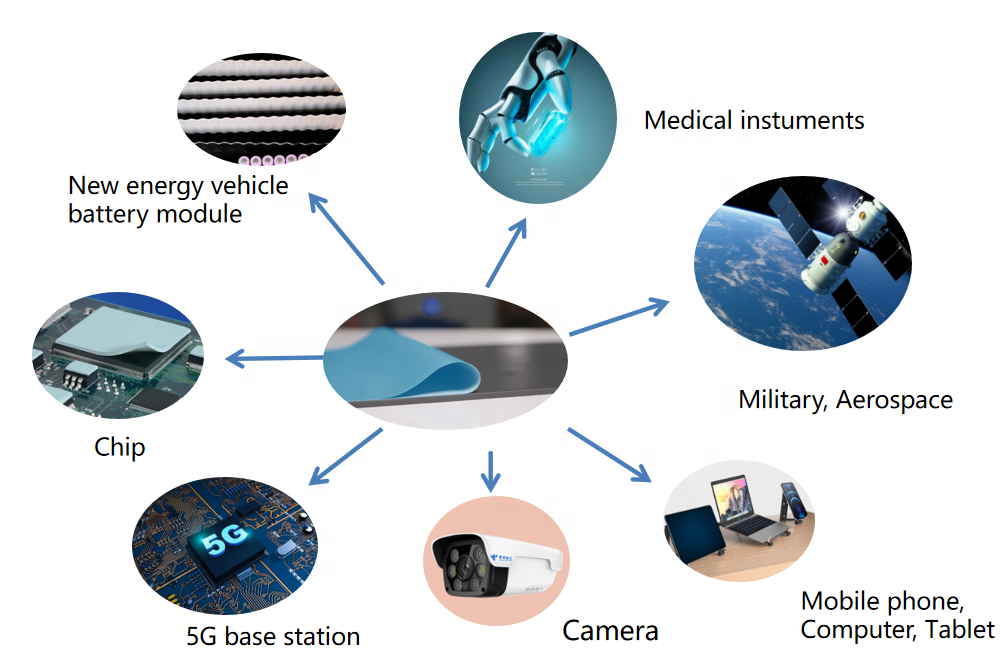

2.application
Products involving heat dissipation components suchas new energy vehicles/3C/LCD TVs/home energystorage.
3.Technological Parameters:
Thermal conductive silicone grease | |||||
Performance test | test method | 30108-0120 | 30108-0270 | 30108-0400 | 30108-0350 |
Color | visual | white | white | white | white |
Conductivity(W/m*K) | ISO 22007-2 | 1.2 | 2.7 | 4.0 | 3.5 |
Thermal resistanse(oC-cm2/W) | ASTM D5470 80oC@50psi | 0.2 | 0.18 | 0.12 | 0.05 |
Density(g/cc) | ASTM D792 | 2.5 | 3.0 | 3.2 | 3.3 |
viscosity(mPa*s) | ASTM D2196 | 50,000 | 20,000 | 70,000 | 100,000 |
4.Notes of use thermal grease
Thermal grease is not a permanent durable material, it will be with the use of time, temperature, pressure, humidity and other factors, it may dry, harden or cracks, so that its thermal conductivity and fill the gap effect is reduced.
When applying thermal grease, probably only need to enlarge the size of a grain of rice on the CPU, and put a small grain of rice on the GPU or Northbridge chip is enough. Put the thermal grease in the centre of the chip, with the bottom of the radiator directly press a pressure, turn a turn, so that the grease can try to fill the gap between the chip surface and the bottom of the radiator, due to the bottom of the bottom of the direct paste heat pipe is more popular, pre-scrape flat, but will be prone to cause the bottom of the radiator some of the deeper grooves to fill not enough, affecting the ability to dissipate heat.
5.FAQ
A)How could I get a sample?
Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.
B)Sample time?
Within 10-30 days.
C) Whether you could make our brand on thermal grease ?
Yes. We can print your Logo on both the Thermal Grease and the packages if you can meet our MOQ.
D) Whether you could make thermal grease by our color?
Yes, The color of thermal grease can be customized if you can meet our MOQ.
E) How to guarantee the quality of thermal grease ?
1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
F) : Do you accept R & D assignments?
Yes, as long as we can do products, we can according to Your Design Requirements of individual R & D.
